Clean Bin Sensor—As Required

1. CAUTION:

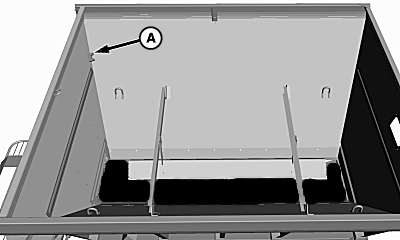

   N108298-UN-05NOV13

   Single Bin Sensor

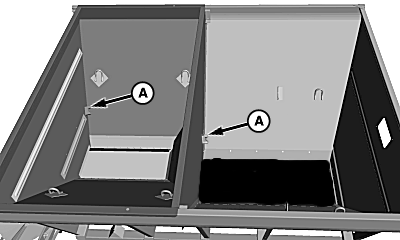

   N108299-UN-05NOV13

   Dual Bin Sensors

   A - Bin Sensor

   Avoid injury from falling. Stay out of spreader body. Do not climb on spreader body.

   IMPORTANT: Avoid spreading wet material, it may stick to sensor and not warn operator when bin is low.

   DO NOT aim high pressure washer directly at sensor damage to sensor may occur.

   NOTE: Clean sensor periodically to prevent accumulation of material.

   Use a commercial ladder to access bin sensors (A) without climbing on or entering spreader body.

---




2. Clean sensor with brush or hose.
