Dimensions DN485

N95913-UN-13APR12

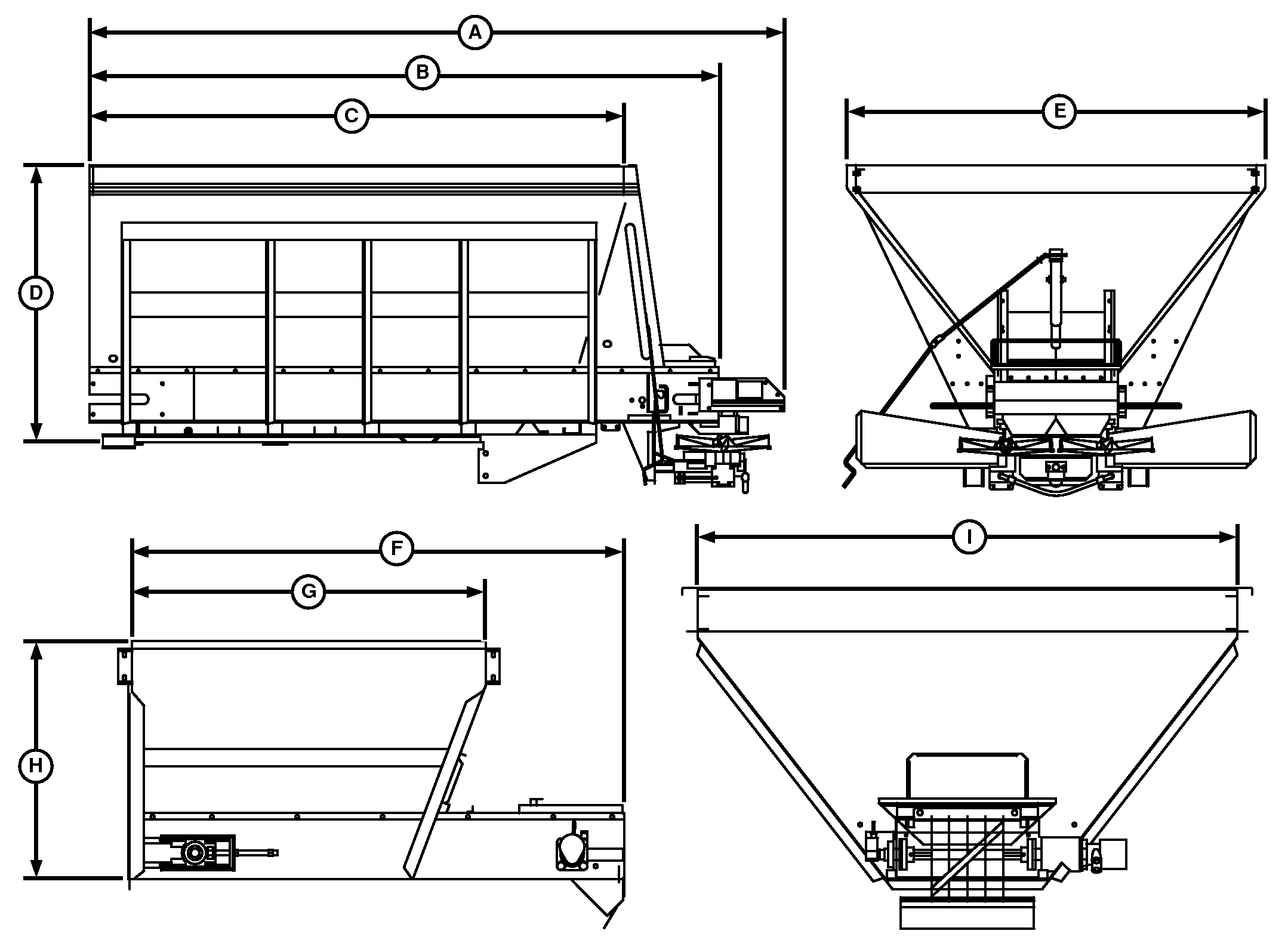

DN485 and Second Product Bin

Unmounted Dimensions
Item	Description	Measurement
A	Overall Length	437 cm (172 in.)
B	Bottom Length	396 cm (156 in.)
C	Inside Length	335 cm (132 in.)
D	Height	170 cm (69 in.)
E	Width	305 cm (120 in.)
F	Second Product Bin Bottom Length	212 cm (83.5 in.)
G	Second Product Bin Inside Length	152.4 cm (60 in.)
H	Second Product Bin Height	129.5 cm (51 in.)
I	Second Product Bin Inside Width	292.9 cm (115.3 in.)

N103602-UN-02MAY13

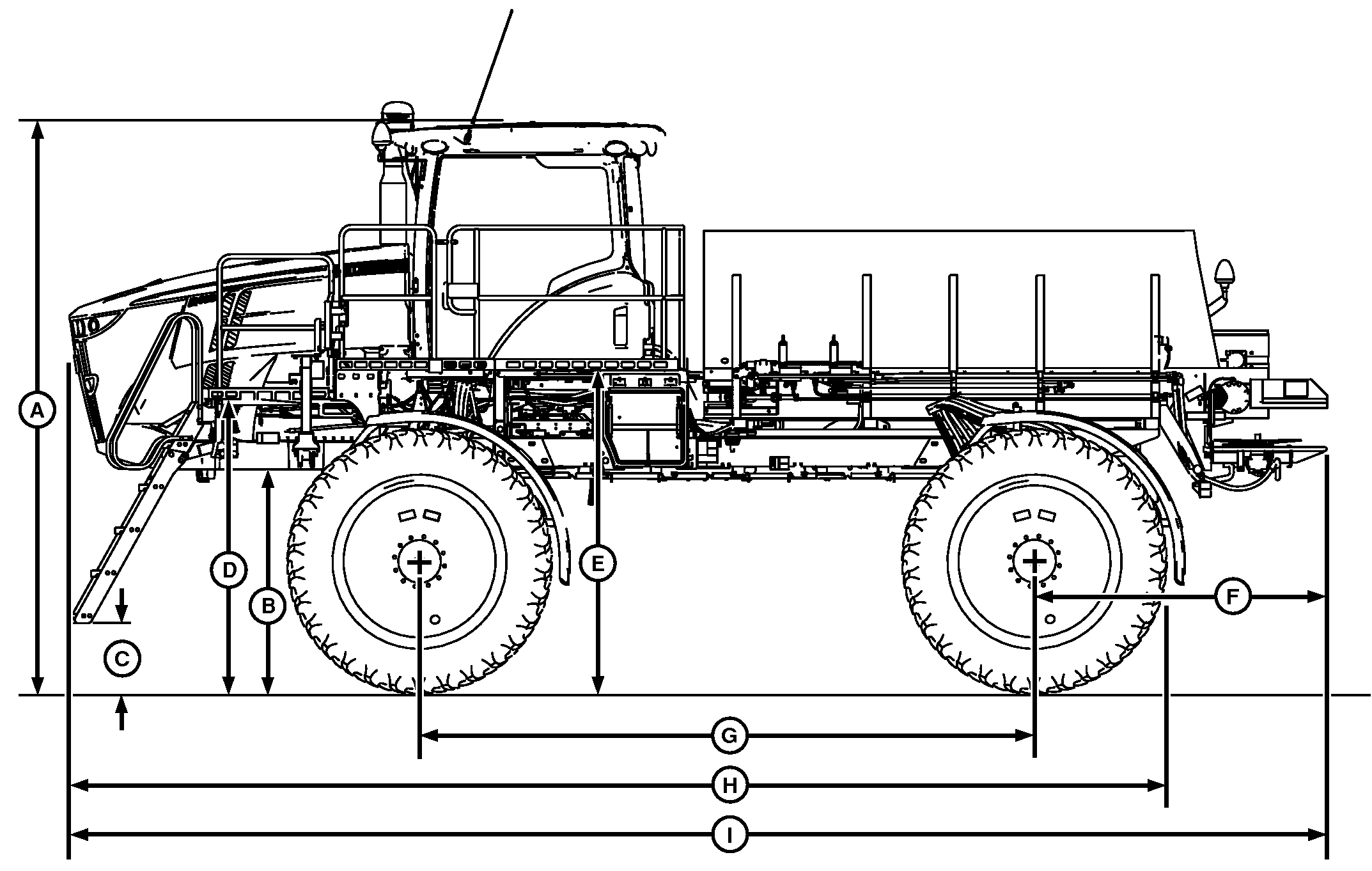

Dimensions1
Item	Description	Measurement
A	Cab Height with Air Springs, Inflated	3886 mm (153 in.)
A	Cab Height with Air Springs, Deflated	3719 mm (146.4 in.)
B	Underframe Clearance	1189 mm (46.8 in.)
C	Bottom Of Ladder	375 mm (14.75 in.)
D	Front Platform Height	1966 mm (77.38 in.)
E	Top Platform	2153 mm (84.75 in.)
F	Center of Rear Tire to Rear Most Boom Point2	2051 mm (80.75 in.)
G	Wheelbase	3691 mm (170 in.)
H	Front of Machine-to-Rear of Rear Tire3	8180 mm (322 in.)
I	Front of Machine-to-Rearmost Boom Point	6120 mm (241 in.)
