Install Inverted V—DN456

1. IMPORTANT:


   N98646-UN-23MAY12


   N98645-UN-23MAY12

   Parts Shipped in Product Bin

   A - Inverted V

   B - Endgate

   C - Cardboard Box

   D - Hillside Divider

   If machine has second product bin insert installed, and a removable endgate (B) ordered as an option, the removable endgate will be mounted in the box in front of the second product bin and the hillside divider parts (D) along with Inverted V parts (A) will be in the product bin.  Hardware and small parts for hillside divider are in cardboard box (C). Remove all parts before beginning assembly.

   NOTE: Inverted V is only used in boxes that do not have second product bin inserts.

   Remove packaged Inverted V parts from machine prior to use.

---




2.

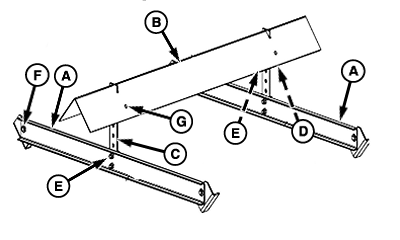

   N109666-UN-30JAN14

   High Yield Position Shown—Lime (R4045 Only)

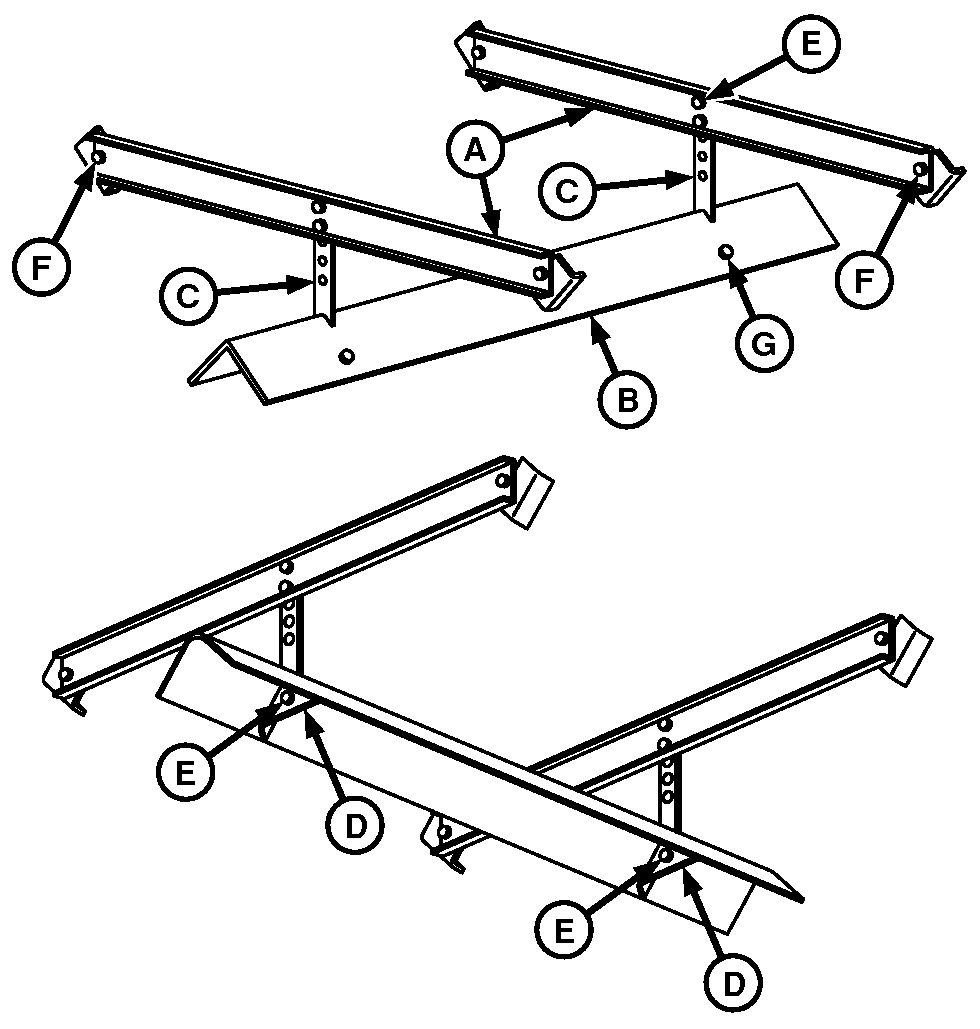

   N97429-UN-13MAR12

   Standard Yield Shown (Fertilizer)


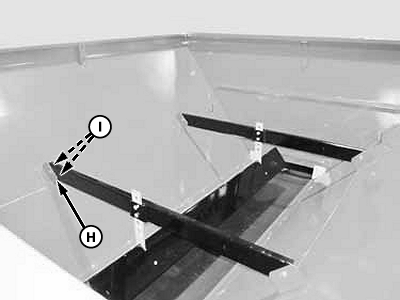

   N97121-UN-24MAY12

   A - Hanger—V Weldment

   B - Inverted V—7 ft.

   C - Bar—Adjusting

   D - Bracket—V (2 used)

   E - Cap Screw, Washer and Nut, 5/8 x 1-3/4 in. (4 used)

   F - Cap Screw, Washer and Nut, 1/2 x 1-1/4 in. (4 used)

   G - Cap Screw, Washer and Nut, 5/16 x 1 in. (4 used)

   H - Bracket (4 used)

   I - Cap Screw, Washer and Nut, 1/2 x 1-1/4 in. (8 used)

   Assemble inverted V to desired configuration using parts (A—G).

---




3. Set inverted V inside unit.

4. Attach brackets (H) to sides of unit with flanges facing rearward using hardware (I).

5. Position inverted V at desired level.
