Verify Correct Belt Tension—Straight Belt Conveyor Only
N98563-UN-21MAY12
N101199-UN-15NOV12

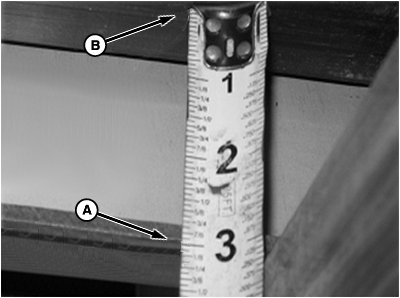

A - Bottom of Sill
B - Conveyor Belt

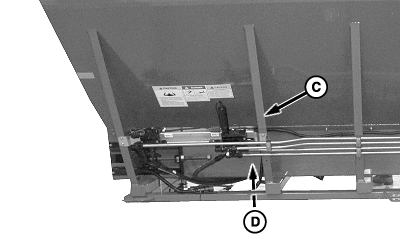

C - Second Stake
D - Location of Measurement
From underneath spreader box, measure vertical distance from bottom of sill (A) to belt (B) in front of the second stake (C).Measurement should be as specified on both sides of the conveyor.
| Item | Measurement | Specification |
| Belt Tension | Gap | 7.62 cm (3 in.) |
Adjust at front idler pulley if necessary.
|
