Install Beacon Light Kit—If Equipped

1. NOTE: Cabs not factory equipped with beacon light option do not have a beacon light switch. Contact your local John Deere dealer for the necessary parts.

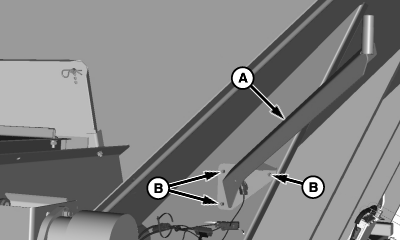

   N103528-UN-26APR13

   A - Beacon Light Bracket

   B - Hardware

   Install beacon light bracket (A) as shown with supplied hardware.

---




2.

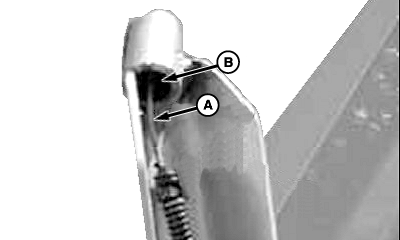

   N103529-UN-26APR13

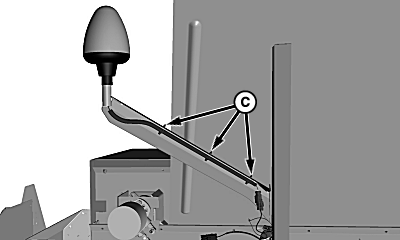

   N103530-UN-26APR13

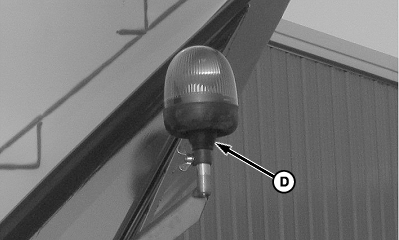

   N97118-UN-02APR12

   A - Electrical Wire

   B - Connector

   C - Tie Bands

   D - Beacon

   Thread electrical wire (A) through bottom of hole on bracket top.

---




3. Connect electrical wire to connector (B).

4. Route electrical harness down bracket and retain with tie bands (C).

5. Attach beacon light (D) to connector at bracket top and tighten wing screw.
