Install Second Product Bin Hillside Divider

1. NOTE:


   N98627-UN-23MAY12


   N103532-UN-26APR13

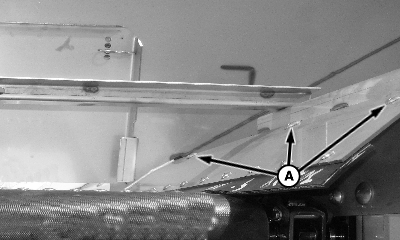

   A - Chain Shield Hardware

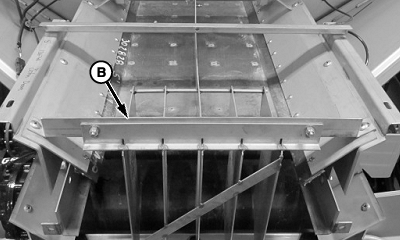

   B - Second Product Bin Hillside Divider

   Deere and Company will not be liable for misapplied material due to an improperly adjusted divider, spreader or both.

   Remove and retain hardware (A) from both sides of chain shield.

---




2. Install second product bin hillside divider (B) over conveyors and retain using previously removed chain shield hardware.

3.
   N97222-UN-01JUN12

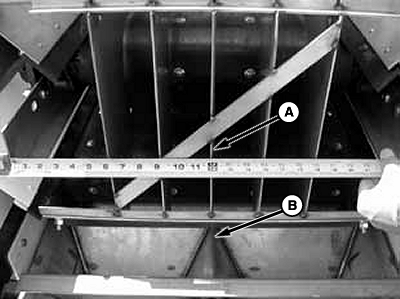

   A - Middle Divider

   B - Spinner Material Divider

   Adjust hillside divider so that the middle divider (A) is centered over both conveyors and the spinner material divider (B) as shown.

---




4. Tighten hardware to recommended torque.
