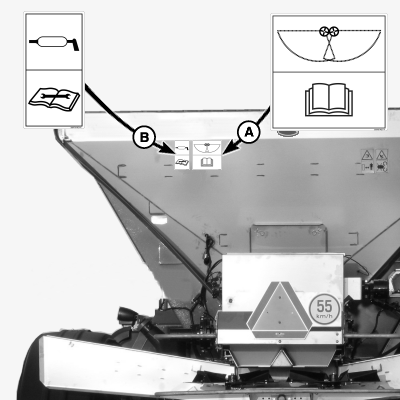

Informational Decal

N101210-UN-26APR13

Decal A

NOTICE

Spinner assembly and material flow divider have NOT been adjusted at the factory. Before assembling unit, read and follow assembly instructions in the operation and maintenance manual for this unit.

Before spreading material, spread pattern tests must be conducted to properly adjust the spread pattern. Refer to the Spread Pattern section of this manual for adjustment instructions. A spread pattern test kit is available from your John Deere dealer.

Wind, humidity, rain, and other adverse weather conditions can affect spread pattern, resulting in uneven crop growth and loss of yield.

THE MANUFACTURER OF THIS SPREADER WILL NOT BE LIABLE FOR MISAPPLIED MATERIAL DUE TO AN IMPROPERLY ADJUSTED SPREADER OR ADVERSE WEATHER CONDITIONS.

It is recommended that spread pattern tests be conducted prior to each spreading season, after any spreader maintenance, and periodically during the spreading season. Spread pattern tests must be conducted whenever a new product is to be applied.

Decal B

NOTICE

• Spreader hopper life will be noticeably extended if the unit is washed daily when spreading fertilizer.
• Wash under side of belt by using water hose in port daily. (See WASH CONVEYOR BELT in Lubrication and Maintenance section.)
• Conveyor belt should be turning during wash cycle.
• Failure to maintain the conveyor will drastically shorten belt life and is cause for voiding the warranty.

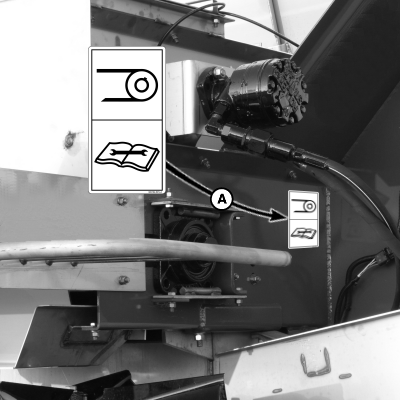

N95927-UN-13APR12

Decal A

NOTICE

• Spreader hopper life will be noticeably extended if the unit is washed daily when spreading fertilizer.
• Wash under side of belt by using washer hose in wash port daily.
• Conveyor belt should be turning during wash cycle.
• Failure to maintain the conveyor will drastically shorten belt life and is cause for voiding warranty.

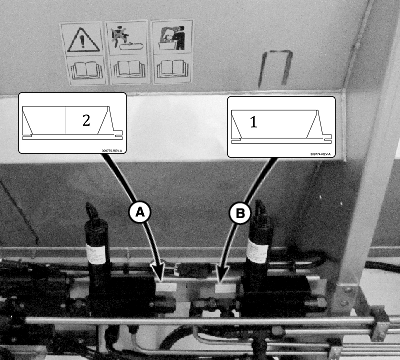

N101211-UN-17DEC12

Decal A

Bin 2 Servo Valve

This valve turns the conveyor on and off for bin 2.

Decal B

Bin 1 Servo Valve

This valve turns the conveyor on and off for bin 1.
