Set Application Rates

Set Application Rates Through Product Setup Screen

1.

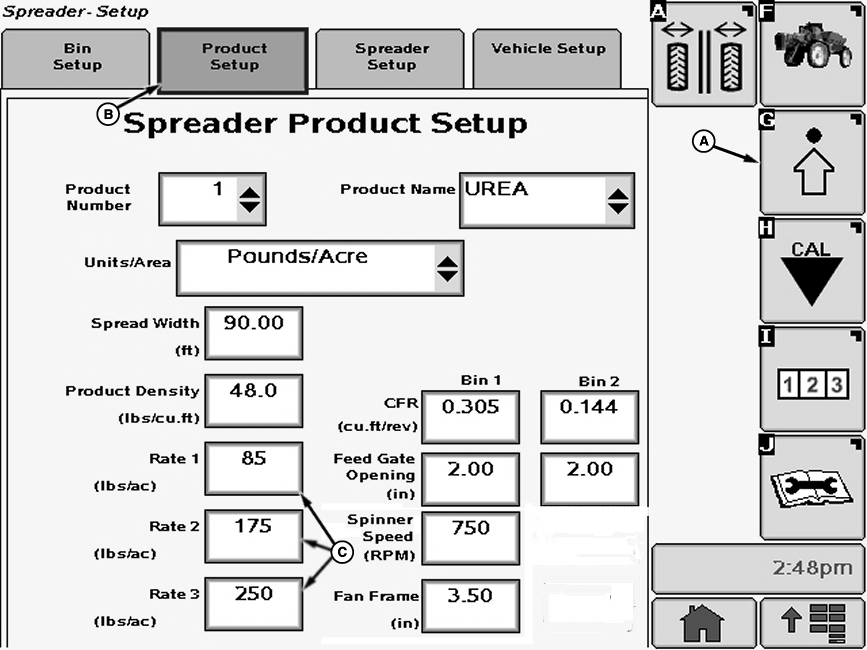

   N82569-UN-08DEC08

   A - Setup Softkey

   B - Product Setup Tab

   C - Input Box

   Select the Setup softkey (A).

---




2. Select the Product Setup tab (B). Spreader Product Setup screen appears.

3. Select input boxes (C) to input the target application rates, in kg/ha or t/ha (lb/acre or tons/acre) into Spreadstar™. A numeric key pad appears on screen to input new value. Press Enter button on keypad to accept the new value.

Set Application Rates Through Spreader Main Page

1.

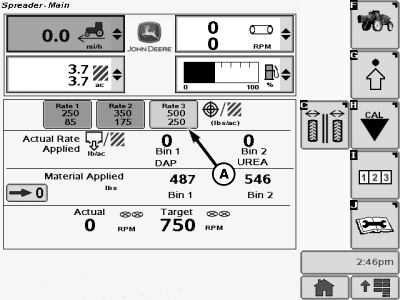

   N91124-UN-16FEB11

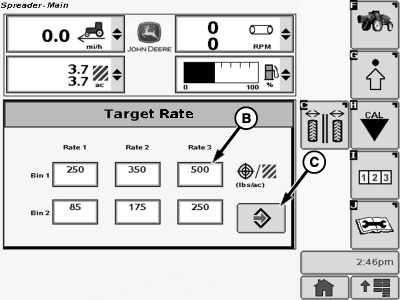

   N91123-UN-16FEB11

   A - Button

   B - Input Box

   C - Enter Button

   Select button (A) for the rate to be changed. Target Rate submenu appears.

---




2. Select input box (B) for the rate which needs to be changed. A numeric key pad appears on screen to input new value. Press Enter button on keypad to exit keypad.

3. Press Enter button (C) to accept the new value.
