Install Replacement Spreader Fins—As Required

1.
   N97834-UN-04APR12

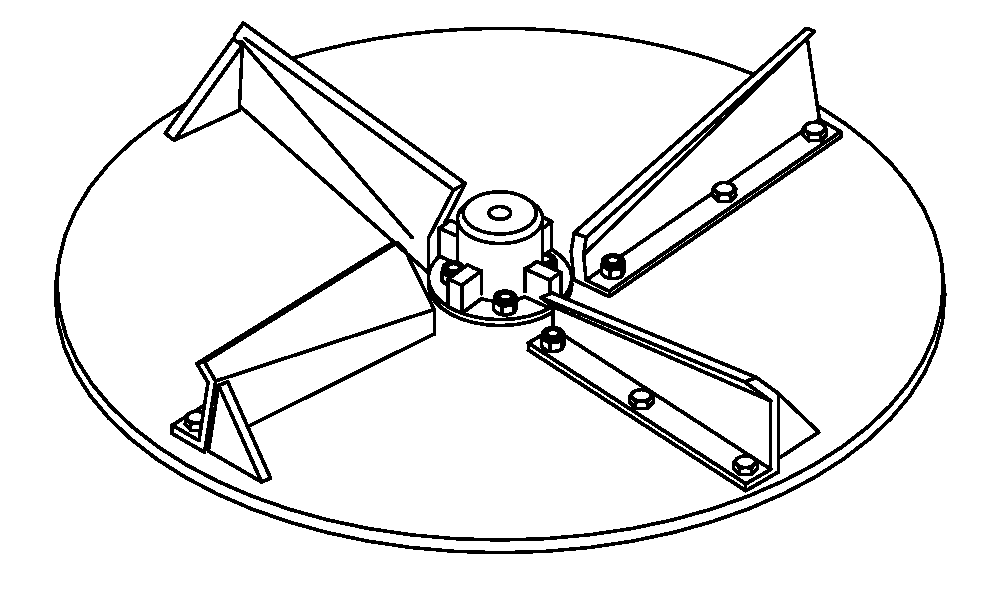

   Left-Hand Spinner Disc


   N97835-UN-04APR12

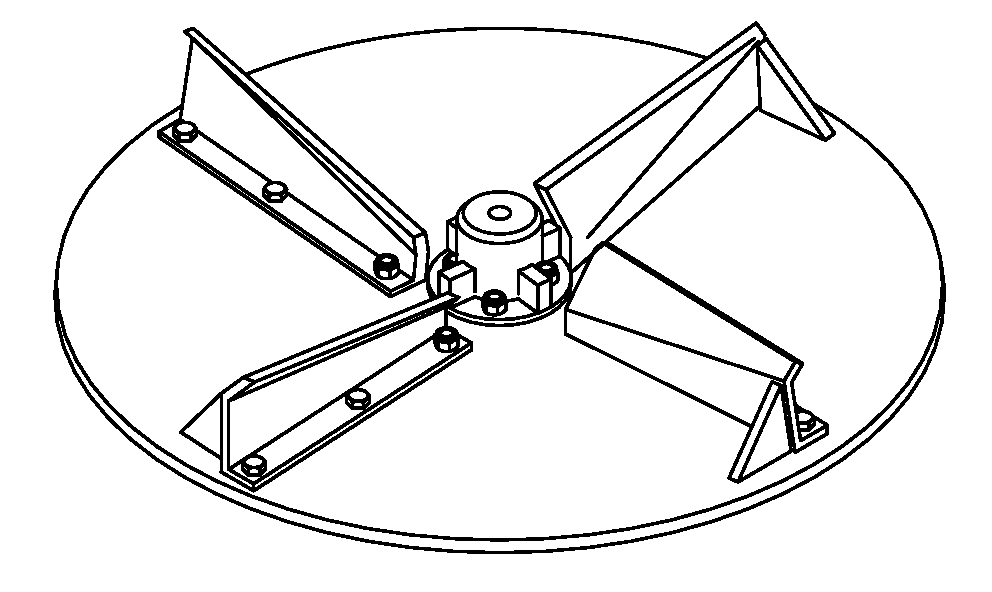

   Right-Hand Spinner Disc

   Remove existing spreader fins.

---




2. Locate proper replacement fins and hardware from fin kit.

3. Position fins with gusset near outer edge of spinner disc.

   • Gusset faces counter-clockwise for left-hand disc.
   • Gusset faces clockwise for right-hand disc.



4.
   N97836-UN-04APR12

   A - Left-Hand

   B - Right-Hand

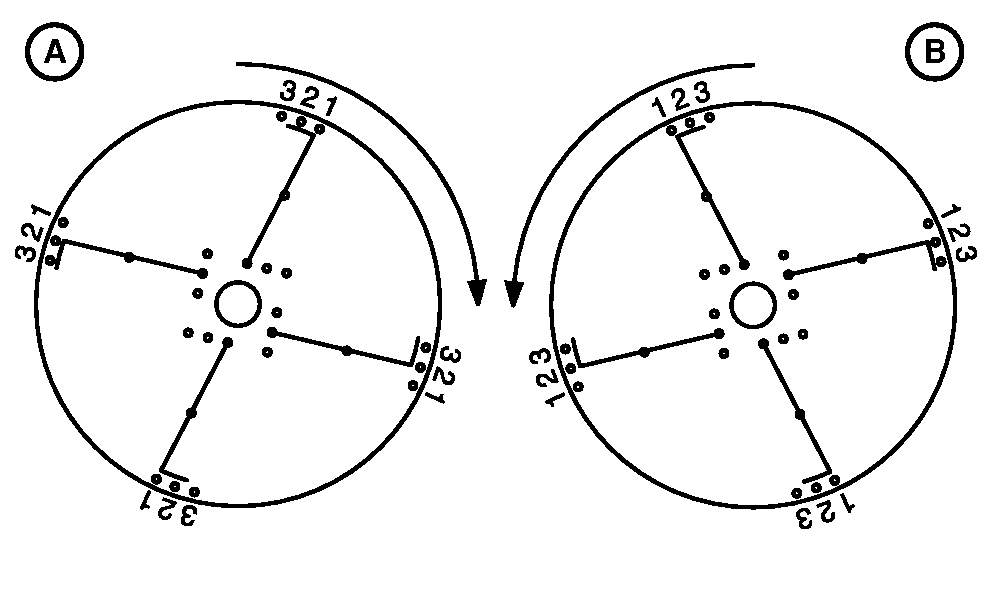

   Place fin hole closest to gusset over proper hole near outer edge of spinner disc as shown.

---




5. IMPORTANT: Cap screw (B) must be installed with head of bolt on bottom side of disc for the speed sensor. Incorrectly installed hardware will result in machine damage.

   NOTE: Spinner speed sensor will not work if stainless steel hardware is used for cap screw (B).


   N97838-UN-04APR12

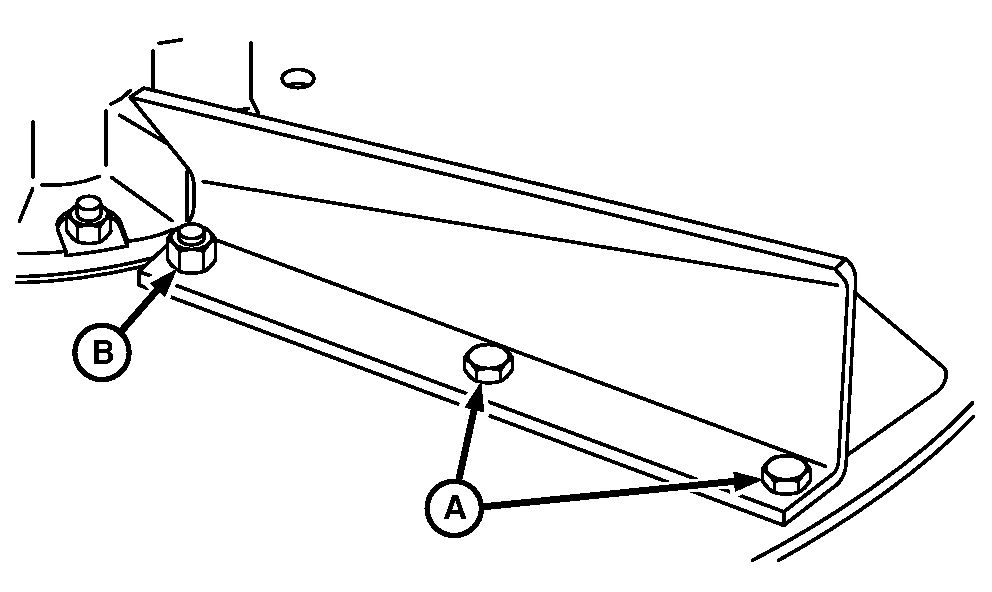

   Detail of Cap Screw Position

   A - Cap Screws and Lock Nuts (Head on Top Side of Disc)

   B - Cap Screw and Lock Nut (Head on Bottom Side of Disc)

   Loosely install cap screws (A) and (B) as shown.

---




6. Tighten hardware (A) and (B).
