Verify Hillside Divider Location

Center hillside divider for equal delivery of product to both sides of the material divider.

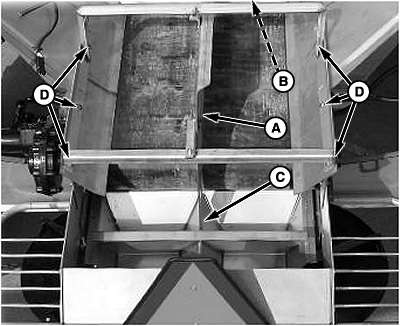

N98644
N98644-UN-23MAY12

A - Hillside Divider

B - Feedgate

C - Material Divider

D - Hardware

Adjust hillside divider so that the middle divider (A) is centered with material divider (C) and feedgate (B). Loosen hardware (D) and adjust if necessary.

OUO6435,0000792-19-20120604
