Verify Spinner Orientation

1. CAUTION: Approximate weight of spinner assembly is 150 kg (340 lb.).

   IMPORTANT: Make sure all shipping contents in box have been removed before starting to operate.

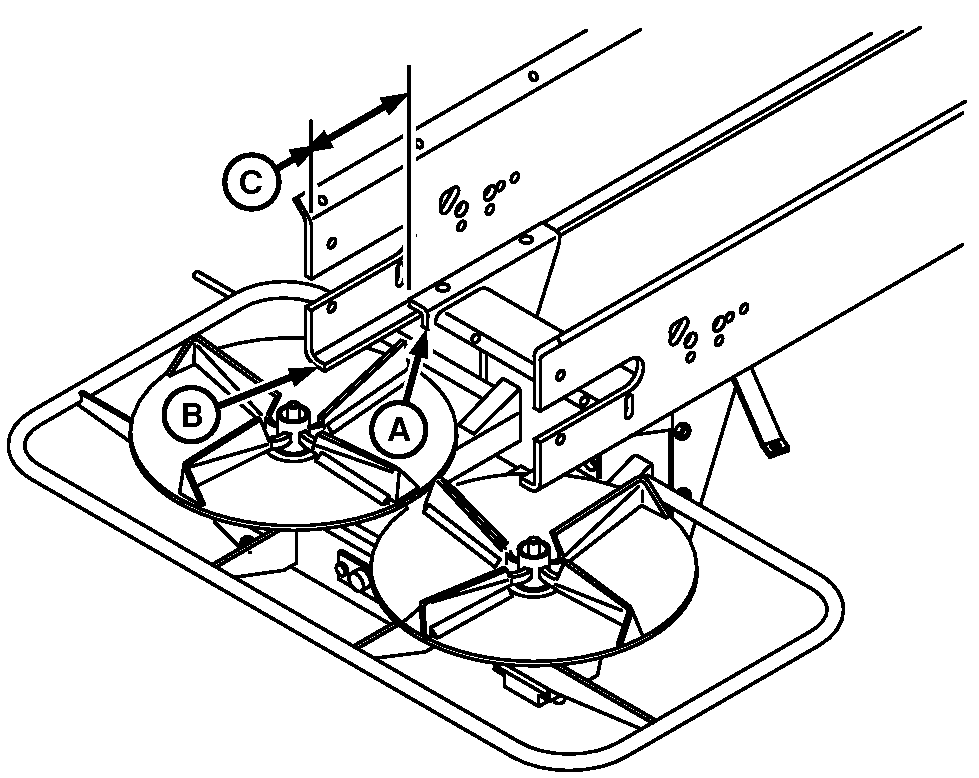

   N97382-UN-18APR12

   A - Spinner Bracket

   B - Rear Edge of Seal

   C - Dimension

   Verify that distance from rear edge of spinner mounting bracket (A) to rear of sill (B) is to specification (C) on both sides.

   Item	Measurement	Specification
   (C)	Distance	25 cm (9-7/8 in.)

---




2. Adjust if necessary to achieve equal distance on both sides.
