Verify Spinner Speed Sensor Gap

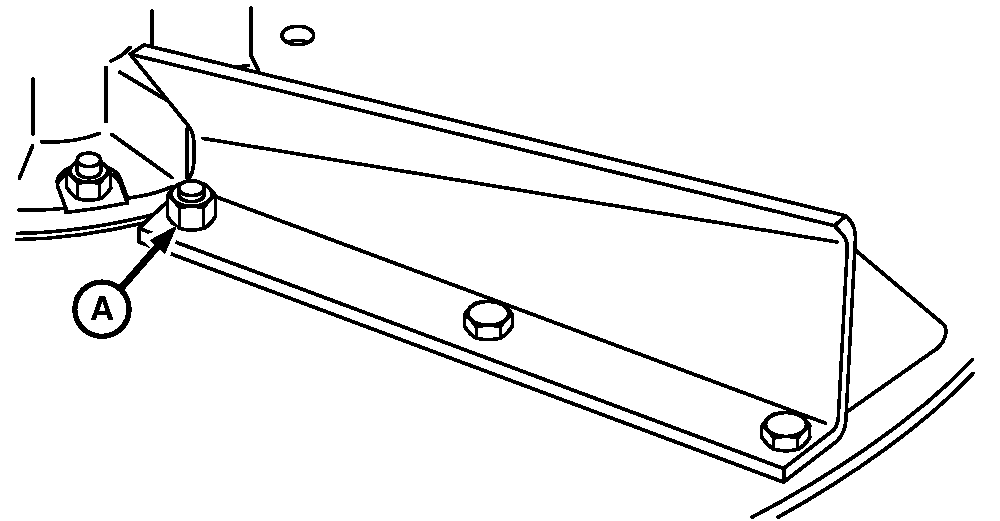

IMPORTANT: Inner fin mounting hardware (A) must be installed from the bottom up to clear speed sensor.
NOTE: Spinner speed sensor will not work if stainless steel hardware is used for cap screw (A).
N98574-UN-21MAY12
N98571-UN-21MAY12

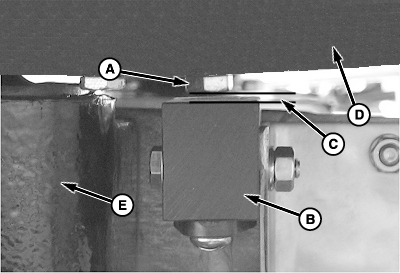

A - Inner Fin Mounting Cap Screw
B - Speed Sensor
C - Gap
D - Bottom Side of Spinner Disk
E - Spinner Drive Motor
Verify gap (C) between head of screw (A) and spinner speed sensor (B) is to specification.
| Item | Measurement | Specification |
| Speed Sensor to Head of Cap Screw | Gap | 3 mm (1/8 in.) |
If gap is out of specification. Loosen hardware retaining sensor to bracket and adjust as needed.
|
OUO6435,00007AA-19-20120531 |
