Adjust Crank Handle Angle (If Equipped)

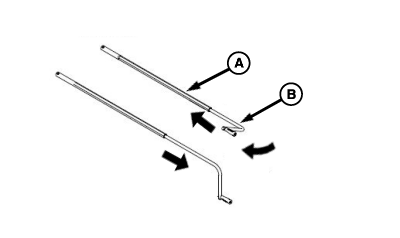

  1. N117364
    N117364-UN-15APR15

    A - Crank Handle

    B - Crank Arm

    Slide crank handle (B) into hexagonal portion of crank arm (A) until it stops.


  2. Rotate handle to desired angle.

  3. Pull crank handle out to desired length.

TB90758,0001A02-19-20150415
