Tarp Cable Tension Adjustment (If Equipped)

1. IMPORTANT: Do not adjust ratchets while operating tarping system.

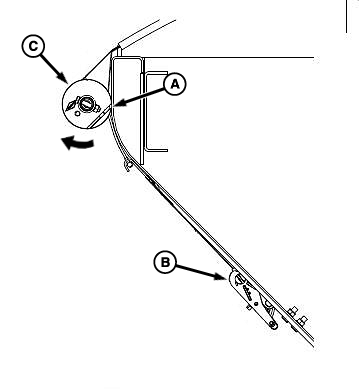

   N117362-UN-14APR15

   Original Channel Position

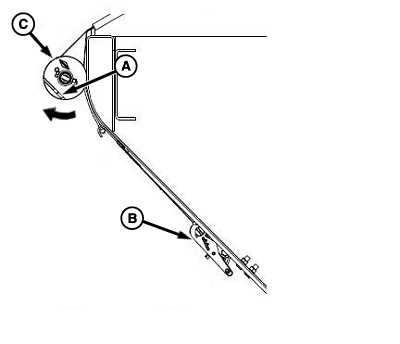

   N117363-UN-14APR15

   Final Channel Position

   A - Channel (2 used)

   B - Ratchet (2 used)

   C - Spool (2 used)

   Tighten ratchet (B) to remove slack and apply tension to tarp.

---




2. NOTE: Ratchet must be in locked position to hold tension. Do not release tension to operate system.

   Tighten ratchet so spool (C) rotates channel (A) 90° from original position.

3. NOTE: Procedure is the same for front and rear spool.

   Open and close tarp five or six times to allow cable to seat in spool grooves and tarp to pull snug.

4. Check position of channel and tighten ratchet as necessary to rotate channel 90° from original position.
