Open Spreader Box Tarp (If Equipped)

1. IMPORTANT: Do not adjust ratchets while opening or closing tarp. Do not load or unload bins while tarp is closed. Do not stand or walk on tarp or end caps. Do not drive machine at highway speeds unless tarp is fully open or fully closed (fully closed is recommended.)


   N117365-UN-21APR15

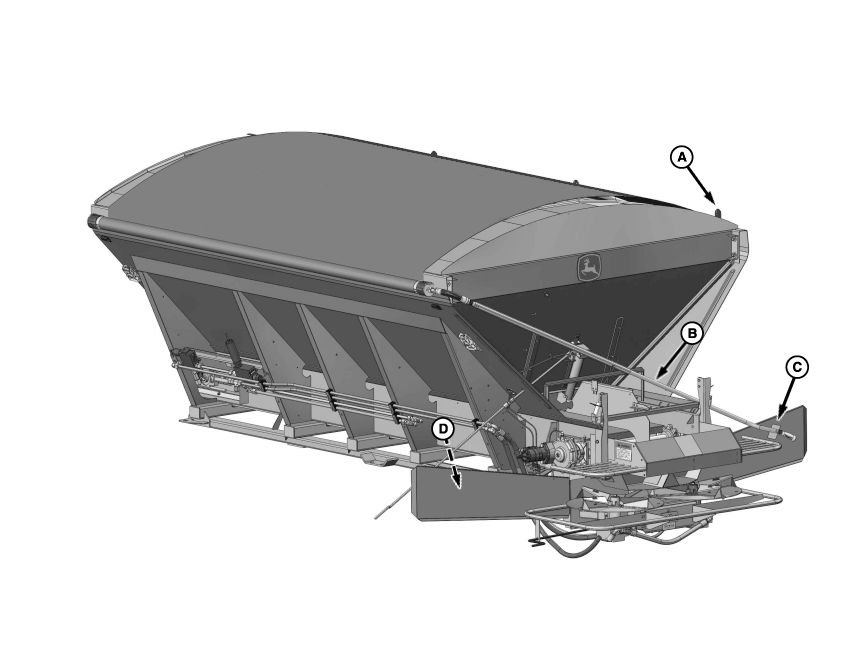

   A - Tarp Stop (3 used)

   B - Crank Arm

   C - Crank Arm Retainer Assembly

   D - Crank Arm Retainer Assembly

   Remove crank arm (B) from crank arm retainer assembly (C) using both hands.

---




2. CAUTION: Hold crank arm firmly with both hands while operating. Uncontrolled crank arm spin may result in injury.

   Turn crank arm in clockwise direction to roll tarp open.

3. Continue turning until rolled tarp rests against tarp stops (A).

4. Return crank arm to opposite side crank arm retainer assembly (D) and secure.
