Close Spreader Box Tarp (If Equipped)

1. IMPORTANT: Do not adjust ratchets while opening or closing tarp. Do not load or unload bins while tarp is closed. Do not stand or walk on tarp or end caps. Do not drive machine at highway speeds unless tarp is fully open or closed (fully closed is recommended.)

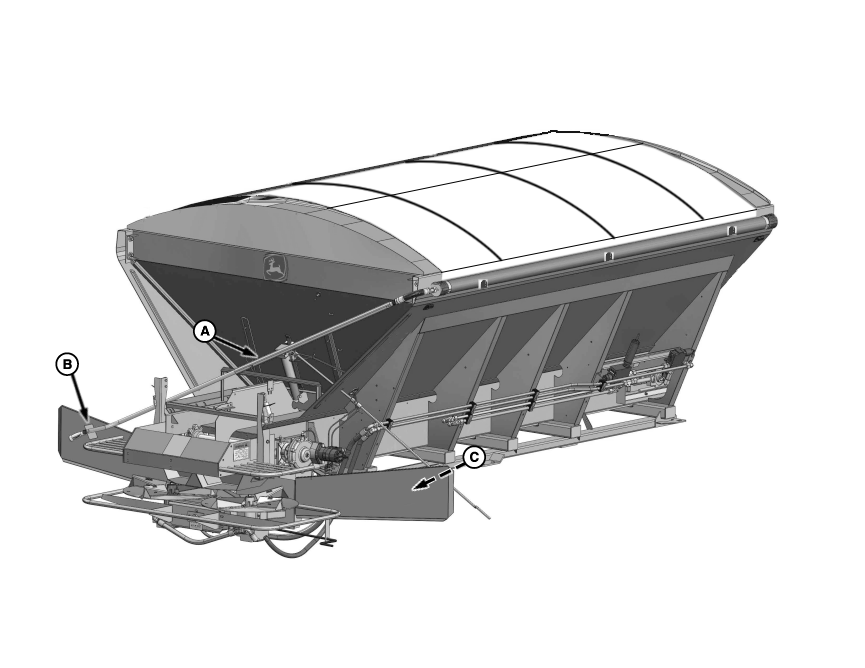

   N117361-UN-22APR15

   A - Crank Arm

   B - Crank Arm Retainer Assembly

   C - Crank Arm Retainer Assembly

   Remove crank arm (A) from crank arm retainer assembly (B) using both hands.

---




2. CAUTION: Hold crank firmly with both hands while operating. Uncontrolled crank arm spin may result in injury.

   Turn crank in counterclockwise direction to roll tarp to covered position.

3. Continue rolling until spreader box is covered.

4. Secure crank arm in crank arm retainer assembly (C).
