Engine - Remove and Reinstall the Intake Air Screen

CAUTION:

TS230-UN-24MAY89

Remove and Reinstall the Cooling Air Intake Screen

LX225641-UN-10NOV14

LX225642-UN-10NOV14

The cooling air intake screen may have to be removed for cleaning or other maintenance purposes. It shall be done in the following manner:

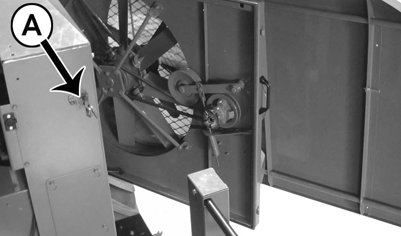

Open the side guard in front of the suction screen. Unlock locking (A) on the suction screen. Turn the screen open.

When refitting, keep the following in mind: Make sure the gear clutch on the fan drive shaft is aligned with its counterpart.

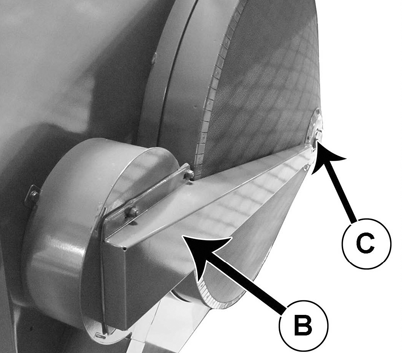

If the rotating screen must be removed when the belt is replaced, for example, take the following measures: Remove the gas spring on the side guard and open the guard all the way. Remove the top cover off the debris vacuum (B). Unlock fastening (C) on the rotating screen and pull the screen off its shaft.

NOTE: You need a ladder to carry out the job.
