Positioning Tractor Drawbar

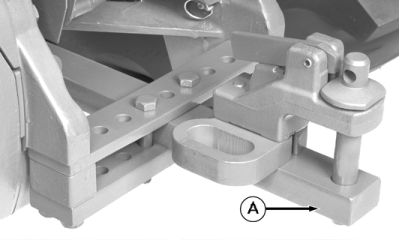

RW55308-UN-28JUN94

John Deere 8000/9000 Series Tractors

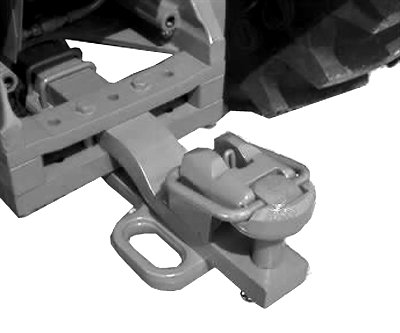

N58122-UN-19SEP01

John Deere 8020/9020 Series Tractors

A - Tractor Drawbar

1. TWO-WHEEL DRIVE TRACTORS:

   Set tractor drawbar (A) in short position.

2. FOUR-WHEEL DRIVE AND TRAC-DRIVE TRACTORS:

   Pin drawbar tightly for transport or field operation.

3. Be sure clevis assembly (if equipped) is installed on top of drawbar. Tighten clevis hardware to specification.

   Item	Measurement	Specification
   Clevis Hardware	Torque	407 N·m (300 lb.-ft.)
