Checking Wheel Nuts
N100224-UN-26SEP12
N100240-UN-27SEP12

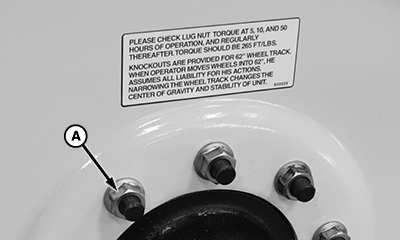

A - Main Frame Wheel Nut

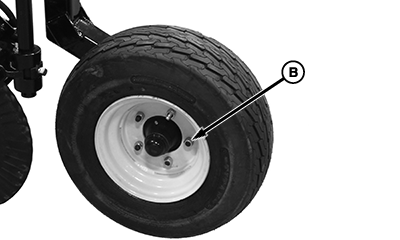

B - Gauge Wheel Nut
Check tightness of all wheel nuts (A) and (B) during first week of operation and periodically after that.Tighten all wheel bolts to specification.
| Item | Measurement | Specification |
| (A) Main Frame Wheel Nut | Torque | 359 N˙m (265 lb.-ft.) |
| (B) Gauge Wheel Nut | Torque | 95 N˙m (70 lb.-ft.) |
|
KB78086,0000D11-19-20120927 |
