Jack

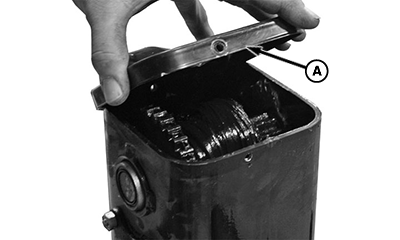

  1. N100232
    N100232-UN-26SEP12

    A - Cover

    Remove jack from mount.



  2. Remove top cover (A) and check grease level.

  3. Install cover and install jack on machine.

KB78086,0000D19-19-20120925
