Adjust Gauge Wheels

N100422
N100422-UN-03OCT12

N100233
N100233-UN-21FEB13

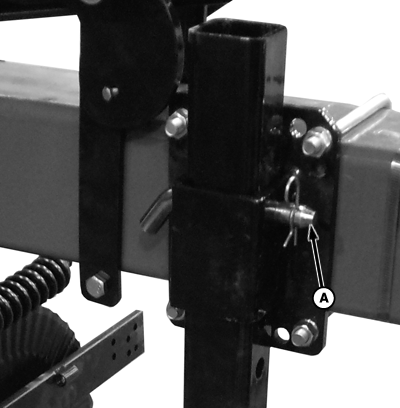

A - Pin

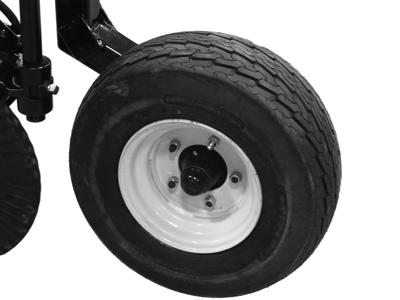

Each inner wing and outer wing is equipped with a gauge wheel that helps to maintain application depth. Lower gauge wheels if soil conditions are soft and raise if hard to obtain the same application depth.

  1. Remove pin (A) and adjust gauge wheel height as desired.

  2. Install pin and lock pin.

  3. Repeat for other side.
