Adjust Nozzles

1.

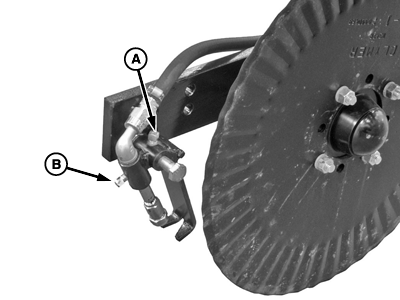

   N100234-UN-27SEP12

   A - Setscrew

   B - Setscrew

   Clear area of bystanders.

---




2. Extend wings and raise tool bar to its fully up position.

3. Place safety stands under center tool bar or install cylinder transport locks on lift cylinders.

4. To adjust nozzle angle:

   1. The best results are obtained when nozzle directs liquid approximately 1 inch (25 mm) behind coulter.

   2. Loosen setscrew (A) to set nozzle at required angle and centered behind coulter.

5. To adjust nozzle spray pattern:

   1. Sight along nozzle and coulter. Nozzle should direct liquid directly behind coulter.

   2. Loosen setscrew (B) to adjust nozzle spray parallel with furrow.
