Detach Machine From Tractor

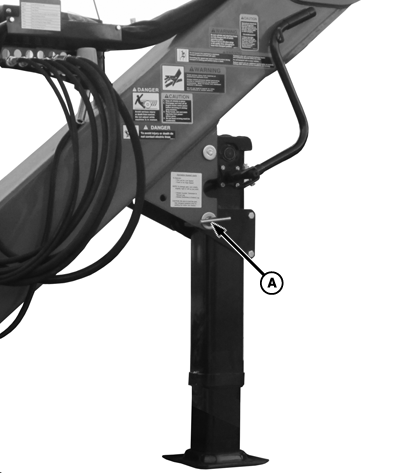

  1. N100220
    N100220-UN-21FEB13

    A - Pin

    Secure jack as shown using pin (A). Remove weight from hitch by turning crank handle to lower jack.



  2. N100239
    N100239-UN-26SEP12

    Wiring Harness And Hoses In Storage Position

    Disconnect wiring harness and place in storage position.



  3. CAUTION: Prevent serious injury or death.

    Relieve hydraulic system pressure before disconnecting hydraulic hoses.

    Disconnect hydraulic hoses and place in storage position.

  4. N100448
    N100448-UN-14FEB13

    A - Safety Chain

    Disconnect safety chain (A).



KB78086,0000D25-19-20130212
