Preparing For Storage

CAUTION: Store unit in an area away from human activity. Do not permit children to play on or around stored applicator.

At end of season, thoroughly inspect and prepare applicator for storage. Repair or replace any worn or damaged components to prevent any unnecessary down time at beginning of next season.

1. Empty remaining liquid from tank. Flush system with water.

2.
   N107821-UN-13NOV13

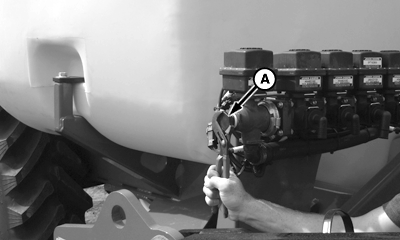

   A - End Cap

   Open all liquid line connections, end cap (A) screen canister and pump. Drain all fluids out of system. Reinstall all plugs.

---




3.
   N107822-UN-13NOV13


   N107823-UN-13NOV13

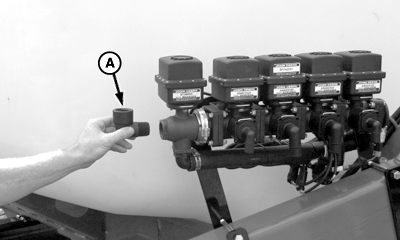

   A - 90° Elbow

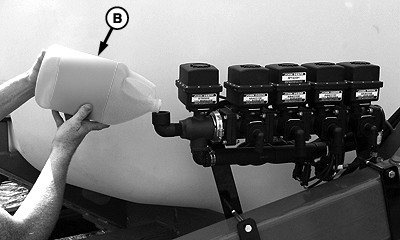

   B - SprayMaster Winterizer Fluid

   Attach 90° elbow (A) and fill valve block with SprayMaster Winterizer Fluid (B).

---




4. Add approximately 38 L (10 gal) of SprayMaster™ Winterizer Fluid per 3 m (10 ft.) of toolbar.

5. Remove 90° elbow and recap valve block end.

6. Flush the system, then pump through screens, valve, nozzles/check valves and orifices/tips.

7. Thoroughly wash machine using a pressure washer to remove all dirt, mud, debris or residue to protect against corrosion.

8. Lubricate all grease points. Make sure all grease cavities have been filled with grease to remove any water residue from washing.

9. Inspect all hydraulic hoses, couplers and fittings. Tighten any loose fittings. Replace any hose that is damaged or separating from crimped end of a fitting.

10. Inspect all liquid lines and connections. Tighten any loose fittings. Replace any line that is cut, nicked or abraded.

11. Touch up all paint nicks and scratches to prevent rusting.

12. Fold inner and outer wings to transport configuration.

13. Install spacers on lift cylinder rams.

14. Move machine to a storage position.

15. Select an area that is dry, level and free of debris.

16. Place planks under jack for added support if required.

17. Unhook applicator from tractor.
