Inspect Coulters

N100419
N100419-UN-03OCT12

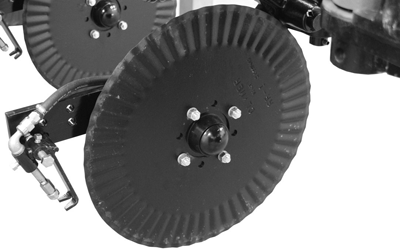

Coulter With Injector

N100420
N100420-UN-22FEB13

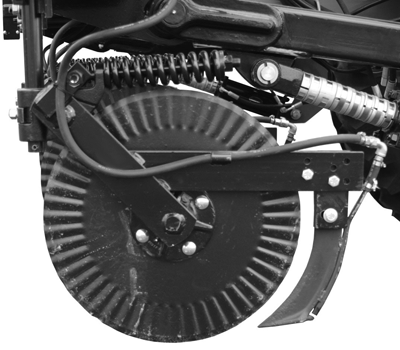

Coulter With Knife

Coulters are used to cut crop residue on surface, penetrate ground and part the soil to accept liquid from nozzle. Coulter depth is controlled by spacers on lift cylinder ram and gauge wheel position.

Inspect coulters frequently if operating in rocky conditions. Bent, chipped or broken coulters will not penetrate soil properly. Always remove entangled material from any component.

KB78086,0000D34-19-20121003
