Safety Features
N102252-UN-25FEB13
N102251-UN-13FEB13

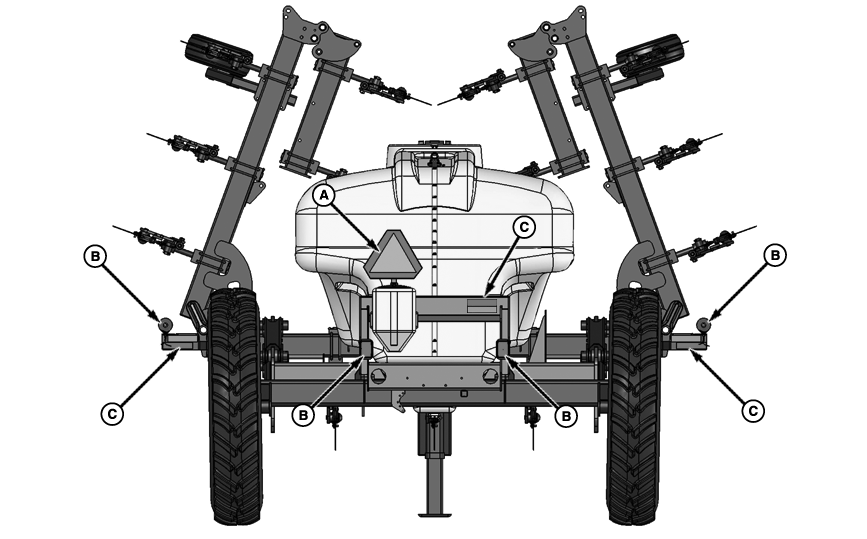

A - Warning Lights
B - Reflectors
C - Safety Chain
D - Jack
E - Safety Chain
2510L Liquid Applicator: In addition to the safety features shown here, other components, systems, safety signs on the machine, safety messages and instructions in the operator’s manual contribute to the safe operation of this machine when combined with the care and concern of a capable operator.The construction of this implement may not meet all local or national requirements for transport on a public roadway. In regions or countries that have national certification requirements for roadway transport, it may be impossible for this implement to be approved for such roadway transport. The customer is responsible for understanding and complying with all local, regional, and national requirements regarding roadway transport.
A—SMV Emblem identifies slow-moving equipment and alerts traffic approaching from rear.
B and C—REFLECTORS and WARNING LIGHTS alert other drivers to presence and width of slow-moving machinery on roadways and signal turns.

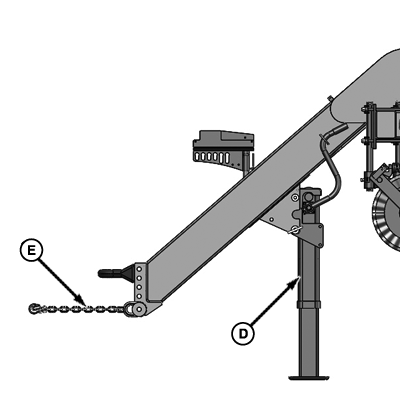

D—Jack prevents machine from falling when in storage.
E—Safety Chain will help control machine should it accidentally separate from tractor drawbar.
|
KB78086,0000D42-19-20130225 |
