Filling Tank

1. CAUTION: Prevent serious injury or death.

   Check chemical or fertilizer MSDS for proper handling instructions.

   Toxic chemicals can enter the body by breathing spray or contact with bare skin. Do not take a chance with your health and safety.

   IMPORTANT:


   TS206-UN-15APR13


   N100432-UN-09OCT12

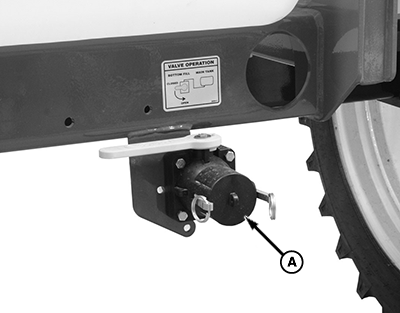

   A - Fill Line

   Transport machine with tank EMPTY to prevent machine damage.

   NOTE: Add only the amount of liquid to the tank that is required for the job.

   Pull up to tender truck or drive truck to machine.

---




2. Connect transfer hose to bottom fill line (A).

3. Start pump on tender truck and open valve on input line.

4. Pump until tank is filled to desired level. Do not over-fill.

5. Close input valve and stop pump on tender truck.

6. Remove and stow fill line.

7. Install and fasten input line covers.
