Prepare Liquid System

Clean System Screen

CAUTION:

TS206-UN-15APR13

N100433-UN-09OCT12

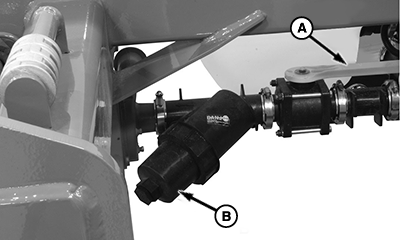

A - Screen

Check chemical or fertilizer MSDS for proper handling instructions.

Toxic chemicals can enter the body by breathing, spray or contact with bare skin.

Do not take a chance with your health and safety.

NOTE: Always turn sump valve off whenever working on liquid circuit components to isolate the liquid in tank.

The liquid system is equipped with a screen (A) in suction line to remove dirt and impurities. Close valve, remove screen and wash with clear water on a daily basis. Clean liquid is required to prevent nozzle plugging.

Drain Tank

Remove plug on end of screen canister to drain tank at the end of each season.

Add only the amount of liquid to the tank that is required for the job. Excess liquid must be removed from the machine at the end of the season to prevent corrosion of metal parts.

Emptying at the end of each day is also recommended to prevent corroding over night. Remove all excess liquid from the machine through the plug on the bottom of the screen canister.
