Making Proper Hose Connections

CAUTION:

X9811-UN-23AUG88

N100832-UN-15MAR13

A - SCV Marker

B - Pressure Arrow

C - Return Arrow

If an accident occurs, see a doctor immediately. Any fluid injected in skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

IMPORTANT: All hydraulic couplers must be clear of debris, dust, and sand. Use protective caps on fluid openings until ready to make connection. Foreign material can damage hydraulic system.

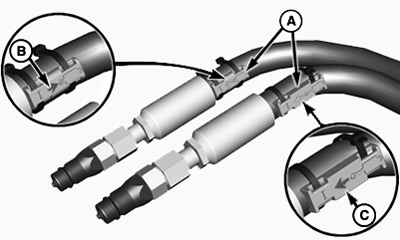

Identify SCV marker (A) color, then use pressure (B) and return (C) arrows to connect to correct SCV outlet. (See SCV Identification chart.)

N100833-UN-29NOV12

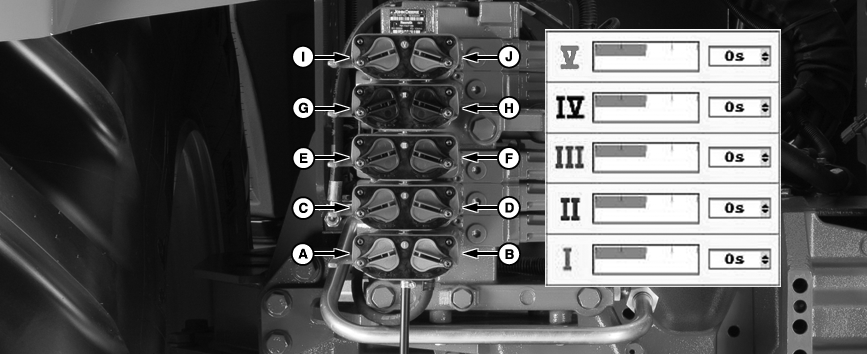

SCV Identification
Legend	SCV Identifier	Flow Type	SCV Color	Hose Color	SCV Usage
A	I	Pressure	Green	Gray	Main Lift\Wing Kick Pressure (Lower)
B	I	Return	Green	Orange	Main Lift\Wing Kick Return (Raise)
C	II	Pressure	Blue	Blue	Inner Wing Fold\Down Pressure Pressure (Lower) - Run in Constant Flow
D	II	Return	Blue	Green	Inner Wing Fold Return (Raise)
E	III	Pressure	Brown	Purple	Outer Wing Fold Pressure (Lower)
F	III	Return	Brown	Brown	Outer Wing Fold Return (Raise)
G	IV	Pressure	Black	Red	Pump Pressure
H	IV	Return	Black	Yellow	Pump Return
I	V	Pressure	Purple		-
J	V	Return	Purple		-

IMPORTANT: Hose colors do not match SCV color. Refer to specific hose color/SCV table to attach correctly.
