Attaching Machine To Tractor

1.
   X9811-UN-23AUG88


   N100448-UN-14FEB13

   A - Safety Chain

   Make sure that all bystanders are clear of working area.

---




2. Make sure there is enough room and clearance to safely back up to machine.

3. Slowly back tractor until holes on hitch and drawbar are aligned.

4. Install drawbar pin and retainer.

5. Attach safety chain (A) securely around tractor drawbar cage to prevent unexpected separation.

6. Check that applicator hydraulic system is compatible with tractor hydraulics. Change applicator if required. Do not operate unless tractor and applicator hydraulics are compatible.

7. CAUTION: Prevent serious injury or death.

   Relieve hydraulic system pressure before connecting hydraulic hoses.

   Connect hydraulics:

   1. Use a clean rag or paper towel to clean dirt from couplers on hose ends and tractor couplers.

   2. Relieve pressure in hydraulic system.

   3. Route hoses over hitch and connect hoses to tractor couplers. Verify couplers are securely seated. Be sure to provide slack for turning.

8. Route electrical lines over hitch and connect to tractor electrical connectors. Be sure to provide slack for turning.

9.

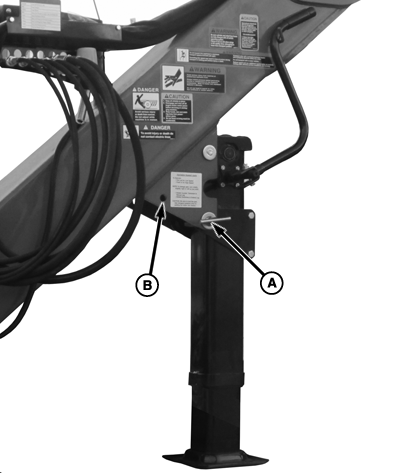

   N100238-UN-21FEB13

   A - Pin

   B - Hole

   Turn crank handle to raise jack. Pull pin (A) out and pivot jack frame forward into its stowed position. Insert pin in hole (B) to secure jack.

---
