Quick Reference For Tractor SCV Functions—Vertical Fold Machines

N102257
N102257-UN-19FEB13

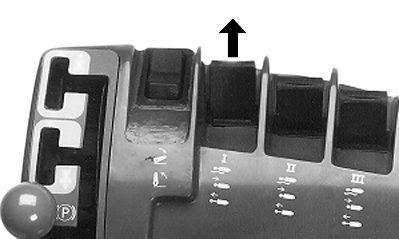

SCV I Pushed Forward

When tractor SCV I is pushed forward the following functions are enabled:

  1. Lowers center section
  2. Lowers wing kick

N102258
N102258-UN-19FEB13

SCV I Pulled Backward

When tractor SCV I is pulled backward the following functions are enabled:

  1. Lifts center section
  2. Kicks wings up

N102259
N102259-UN-19FEB13

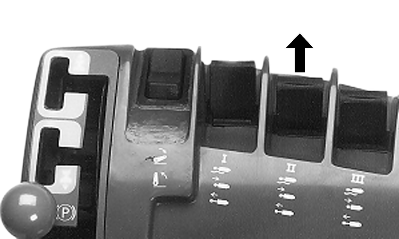

SCV II Pushed Forward

When tractor SCV II is pushed forward the following functions are enabled:

  1. Unfolds inner wings down from transport to field position
  2. Applies down-pressure to wings (must leave tractor SCV engaged when toolbar is in the ground)

N102260
N102260-UN-19FEB13

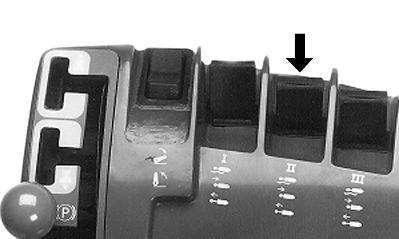

SCV II Pulled Backward

When tractor SCV II is pulled backward the following functions are enabled:

  1. Disengages down-pressure
  2. Folds inner wings up into transport position

N102261
N102261-UN-19FEB13

SCV III Pushed Forward

When tractor SCV III is pushed forward the following functions are enabled:

  1. Unfolds outer wings down into field position

N102262
N102262-UN-19FEB13

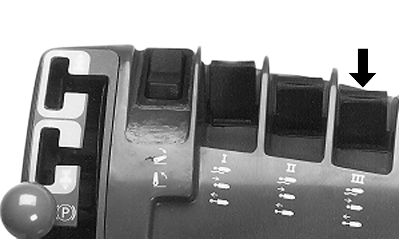

SCV III Pulled Backward

When tractor SCV III is pulled backward the following functions are enabled:

  1. Folds outer wings up into the transport position

N108445
N108445-UN-22NOV13

SCV IV Pushed Forward

When tractor SCV IV is pushed forward the following functions are enabled:

  1. Engages solution pump when applying

N108446
N108446-UN-22NOV13

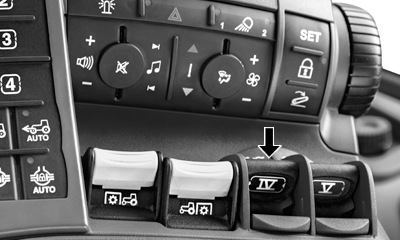

SCV IV Placed In Float Position

When tractor SCV IV is placed in float position the following functions are enabled:

  1. Disengages solution pump for transport
