Adjust Hitch—Machines With Optional R54 Tires ONLY

1. IMPORTANT:


   N113783-UN-29AUG14


   N113784-UN-29AUG14

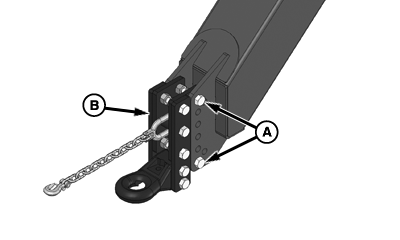

   A - Cap Screw (4 used)

   B - Hitch Assembly

   Verify machine is parked safely before performing hitch adjustment to avoid injury or death caused by uncontrolled machine movement.

   Remove and retain caps screws (A).

---

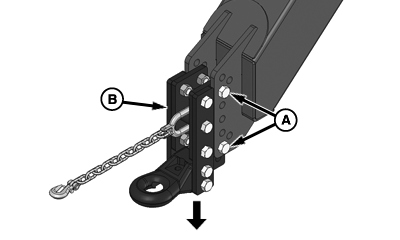

2. Lower hitch assembly (B) and retain using existing caps screws in holes shown.

3. Tighten cap screws to specification.

   Item	Measurement	Specification
   Cap Screws (A)	Torque	873 N·m (644 lb.-ft.)
