Adjust Height Switch

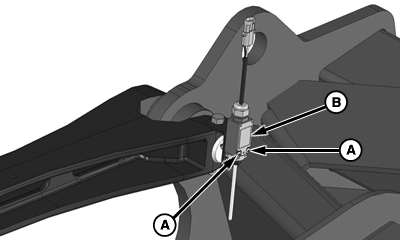

  1. N113785
    N113785-UN-29AUG14

    Height Switch

    N113786
    N113786-UN-29AUG14

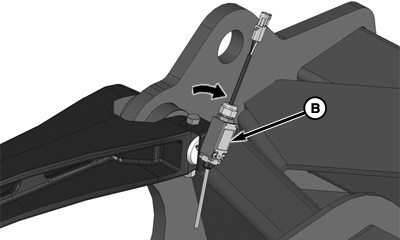

    Adjusting For Lower Toolbar Height

    N113787
    N113787-UN-29AUG14

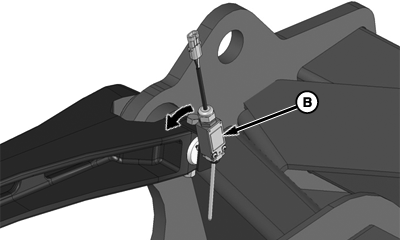

    Adjusting For Higher Toolbar Height

    A - Screw (2 used)

    B - Height Switch

    Loosen screws (A).


  2. Rotate height switch (B) clockwise for later engagement and lower toolbar height.

  3. Rotate height switch counter-clockwise for earlier engagement higher toolbar height.

  4. Tighten screws when desired setting is reached.
