Planter Defaults

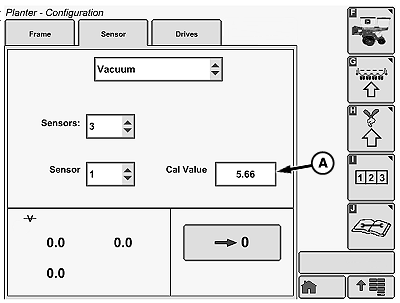

Vacuum Sensors
A72651-UN-19SEP11
A - Calibration Value
Default calibration value for John Deere™ vacuum sensors is 5.66.Screen Area Information
Planter Configuration - Planter Configuration
Frame - Frame
Sensor - Sensor
Drives - Drives
Vacuum - Vacuum
Sensors: - Sensors:
Cal Value - Calibration Value

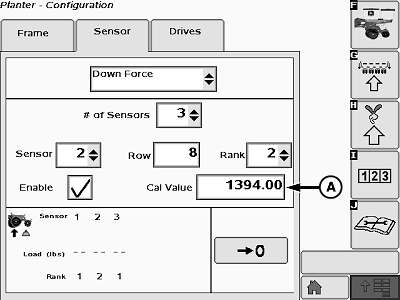

Down Force Sensors
A73020-UN-13OCT11
A - Calibration Value
Default calibration value for John Deere™ down force sensors is 1394.00.Screen Area Information
Planter Configuration - Planter Configuration
Frame - Frame
Sensor - Sensor
Drives - Drives
Down Force - Down Force
# of Sensors - Number of Sensors
Sensors - Sensors
Row - Row
Rank - Rank
Enable - Enable
Cal Value - Calibration Value
Load - Load

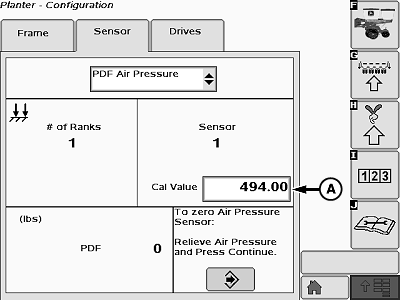

Pneumatic Down Force Air Pressure Sensors
A73022-UN-13OCT11
Set-Point PDF Air Pressure Sensor

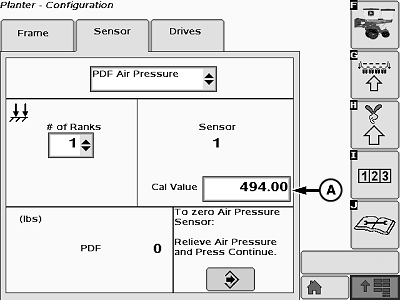

A73023-UN-13OCT11
Active PDF Air Pressure Sensor (Single Rank)

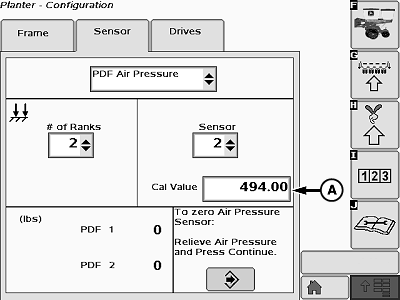

A73024-UN-13OCT11
Active PDF Air Pressure Sensors (Dual Rank)
A - Calibration Value
Default calibration value for John Deere™ pneumatic down force air pressure sensors is 494.00.Screen Area Information
Planter Configuration - Planter Configuration
Frame - Frame
Sensor - Sensor
Drives - Drives
PDF Air Pressure - Pneumatic Down Force Air Pressure
# of Ranks - Number of Ranks
Cal Value - Calibration Value
PDF 1 - Pneumatic Down Force Sensor 1
PDF 2 - Pneumatic Down Force Sensor 2
To Zero Air Pressure Sensor: - To Zero Air Pressure
Sensor:
Relieve Air Pressure and Press Continue - Relieve Air
Pressure and Press Continue

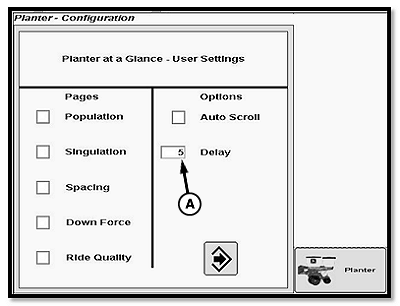

Planter at a Glance - User Settings
A72650-UN-20SEP11
A - Screen Scan Delay
Default setting for screen scan delay 5 seconds.Screen Area Information
Planter Configuration - Planter Configuration
Planter at a Glance - User Settings - Planter at a
Glance - User Settings
Pages - Pages
Population - Population
Singulation - Singulation
Spacing - Spacing
Down Force - Down Force
Ride Quality - Ride Quality
Options - Options
Auto Scroll - Auto Scroll
Delay - Delay

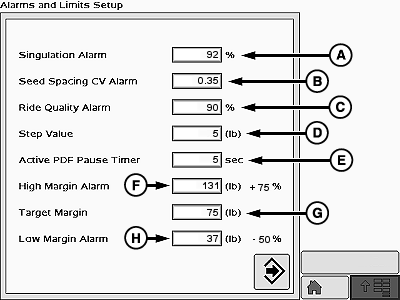

Alarms and Limits Setup
A73151-UN-19OCT11
A - Singulation Alarm
B - Seed Spacing CV Alarm
C - Ride Quality Alarm
D - Step Value
E - Active PDF Pause Timer
F - High Margin Alarm
G - Target Margin
H - Low Margin Alarm
Default singulation alarm setting is 92 percent.Default seed spacing coefficient of variation alarm setting is 0.35.
Default ride quality alarm setting is 90 percent.
Default step value setting is 5.
Default active PDF pause timer is 5 seconds.
Default high margin alarm setting is 75 percent (131 lb.).
Default target margin setting is 75 lb.
Default low margin alarm setting is 50 percent (37 lb.).
Screen Area Information
Planter Configuration - Planter Configuration
Alarms and Limit Setup - Alarms and Limit Setup
|
OUO6064,00005F4-19-20140625 |
