Installing Tractor Weights For Ballast
CAUTION: Each tractor weight weighs 45.4 kg (100 lb). Use proper
lifting equipment to avoid personal injury when installing.
IMPORTANT: Additional weight may be needed when working in hard soil conditions.
A62478-UN-29APR08
A62474-UN-29APR08

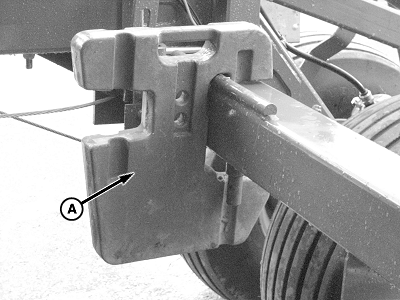

A - Tractor Weights

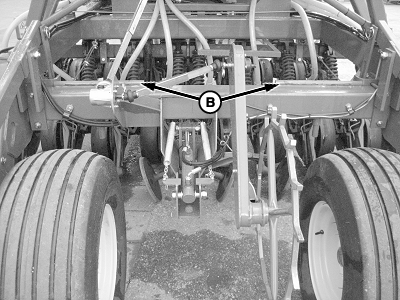

B - Rear Supports
To increase down pressure in very hard ground conditions, tractor weights (A) can be added to rear supports (B) on the drill.
| Item | Measurement | Specification |
| Tractor Weights (10 Maximum) | Total Combined Weight | 454 kg (1000 lb) |
|
