Store Hydraulic Hoses and Wire Harness

A63549-UN-28OCT08

A63548-UN-28OCT08

A - Guide Tube

B - Storage Slots

IMPORTANT: Keep couplers clean. Abrasive particles, like sand or metal fragments, can damage seals, barrels and pistons causing internal leakage.

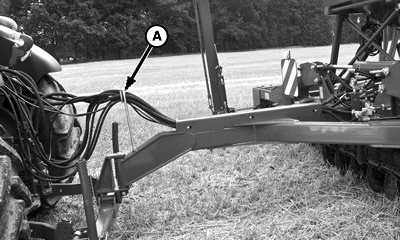

Hydraulic hoses and wire harness are routed up to the tractor through guide tube (A).

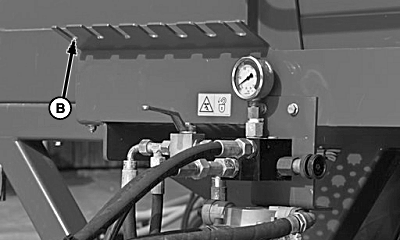

Once disconnected from the tractor, place hydraulic hoses, and wire harness in machine storage slots (B).
