Attaching Parking Brake Lever Rope

CAUTION:

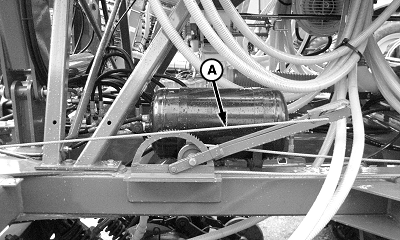

A62481
A62481-UN-29APR08

A - Parking Brake Lever Rope

B - Lever

Avoid damage to machine or injury to third persons during transport. ALWAYS attach rope (A) to tractor cab. If machine becomes unhooked during transport, rope must pull on lever (B) to engage parking brake.

IMPORTANT: Avoid brake damage. Do not attach rope to tractor seat or other locations that cause accidental activation.

Attach rope (A) near tractor center line to avoid tractor tires pulling rope when turning.
