Moving the Drill When Air Brake is Disconnected (Not on Public Roads)

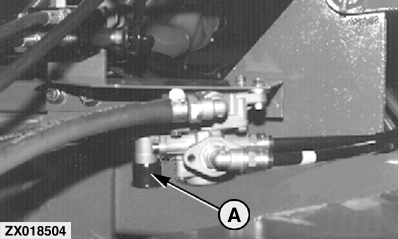

ZX018504-UN-04OCT99

A - Button

When the hoses of the air brake are not connected to a brake system, the drill must not be moved unless the brake is released.

The brake can be released by pressing in button (A). As soon as the hoses are re-connected to the air brake system, button (A) returns automatically to its initial position.
