Fold Outer Units (4 and 6 m Version Only)

1. CAUTION:

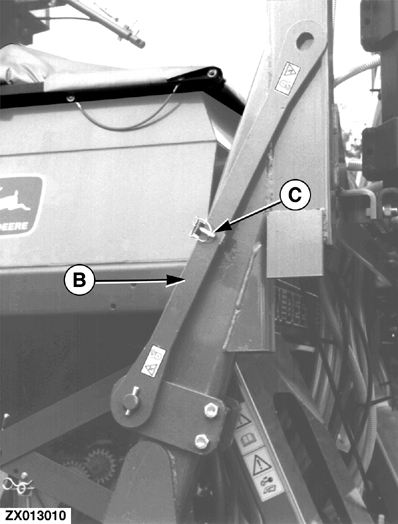

   ZX013010-UN-02DEC97

   6 m Strap Storage Position


   ZX013004-UN-02DEC97

   6 m Transport Lock Position

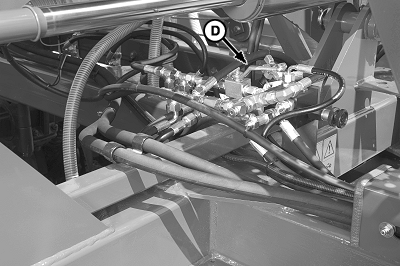

   A63780-UN-10NOV08

   4 m Lock-Up Valve

   A - Outer Unit Frame

   B - Strap

   C - Quick-Lock Pin

   D - Lock-Up Valve

   Serious injury or death to you or others can result from contact with electric lines. Use care when moving or operating this machine near electric lines to avoid contact.

   IMPORTANT: Always fold outer units fully for road transport.

   Fold track markers. (See FOLD AND UNFOLD TRACK MARKERS in this section.)

---




2. Power down monitor, if equipped. Marker and fold cylinders are on same circuit. Monitor power switches an electromagnetic valve between circuits.

3. Fold outer units.

4. Lock outer units in folded position for transport.

   6 m Version:

   • Lock outer unit frame (A) with strap (B).
   • Secure strap (B) with quick-lock pin (C).



   4 m Version:

   • Close Lock-up valve (D).
