Fold and Unfold Track Markers
CAUTION:
A90418-UN-05MAY16

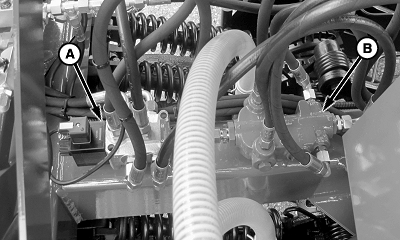

Sequence and Solenoid Valves
ZX013899-UN-02DEC97
A63906-UN-25NOV08

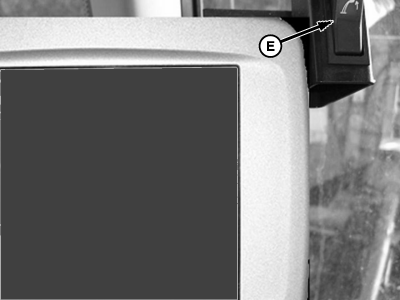

Marker Switch in Off Position
A - Solenoid Valve
B - Sequence Valve
C - Shear Bolt
D - Spare Shear Bolts
E - Marker Switch
Serious injury or death to you or others can result from contact with electric lines. Use care when moving or operating this machine near electric lines to avoid contact.
CAUTION: Avoid personal injury. Do not stand within the working
area of the track markers.
The track markers operate on the same hydraulic circuit as the outer unit fold cylinders. Solenoid valve (A) provides flow in one direction or another.
Signus™ Monitor: When monitor is powered, the markers function. When monitor is powered down, the fold circuit functions.
GreenStar™ Monitor: Marker switch (E) alternates between marker function and fold function. Power does not have to be cycled.
A sequence valve (B) automatically alternates the track markers each time the openers are raised and lowered. To lower both markers simultaneously, lower one marker, then quickly cycle the hydraulic lever to lower the second marker. If a marker arm collides with any other drill components, shorten marker length slightly.

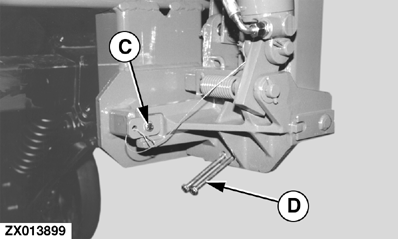

Track markers are overload protected by a shear bolt (C). Two spare shear bolts (D) per marker are provided with the machine.
IMPORTANT: Shear bolts (C) must be correct size for version of machine. The use of other shear bolt types can lead to marker damage.
Use proper shear bolt (C) size.
| Item | Measurement | Specification |
| Shear Bolt (C) | ||
| 3 m and 4 m Versions | Size | M10 x 140 |
| 6 m Version | Size | M10 x 150 |
|
