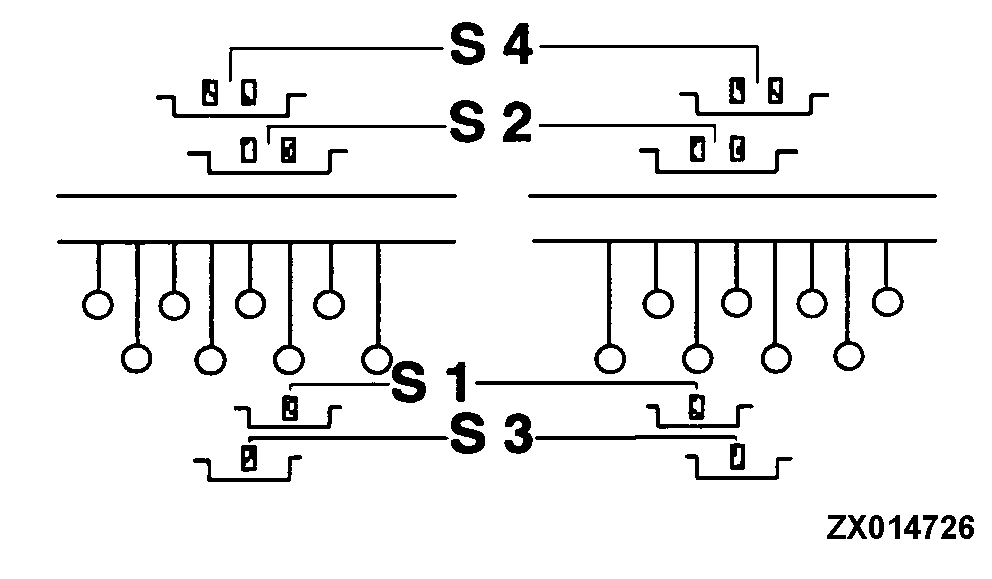

Track Widths of Tractors in Relation to Row Spacing

ZX014726-UN-26FEB98

Drill model	Row spacing	No. of openers
3 m..............	16.6 cm (6.5 in.)	18 openers
4 m..............	16.6 cm (6.5 in.)	24 openers
6 m..............	16.6 cm (6.5 in.)	36 openers

Track width of tractor:
S1..............	1.50 m (59.06 in.)
S2..............	1.67 m (65.75 in.)
S3..............	1.83 m (72.05 in.)
S4..............	2.00 m (78.74 in.)
