Adjusting Land Wheel Reed Switch

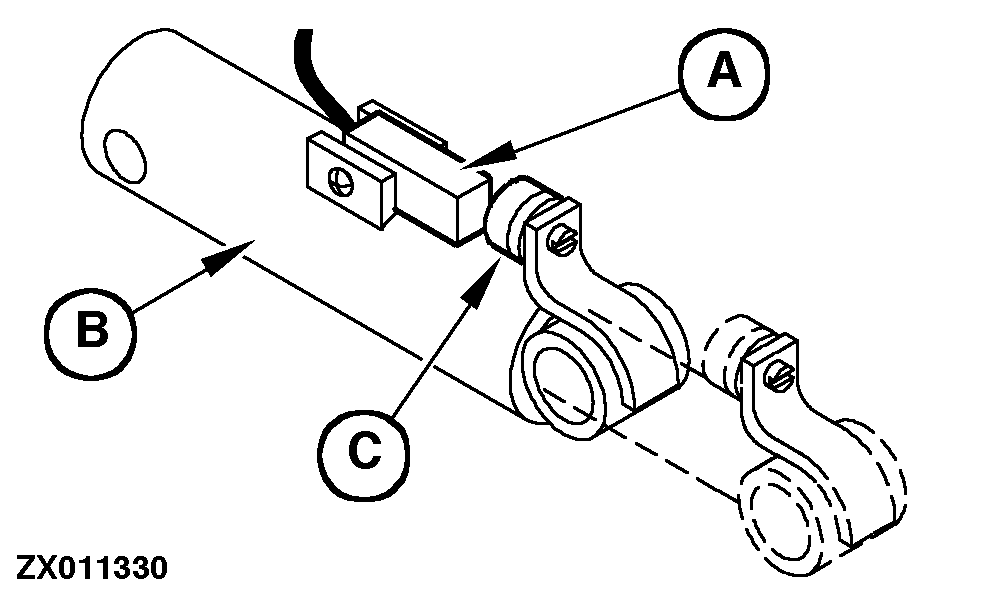

ZX011330-UN-02JUN97

A - Reed Switch

B - Cylinder

C - Magnet

For control of the electronic tramlining system every raising of the land wheel is registered by a reed switch (A) located above the cylinder (B).

NOTE: On 4 m and 6 m machines, the reed switch (B) is located on the land wheel cylinder whereas it is located on the left-hand opener cylinder on 3 m machine.

Adjust distance between reed switch (A) and magnet (C) to specification.

Item	Measurement	Specification
Distance Between Reed Switch and Magnet	Maximum Distance	1.5 mm (0.06 in.)
