Converting to Transport Width

CAUTION: When transporting drill on a road or highway at night or during the day, use lights and devices for adequate warning to operators of other vehicles. In this regard, check local governmental regulations. Various safety lights and devices are available from your John Deere dealer.

A63550-UN-28OCT08

ZX018309-UN-04OCT99

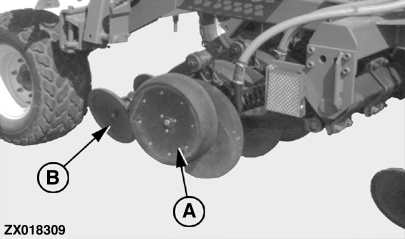

3 m Right-Hand Side Shown

A63536-UN-03NOV08

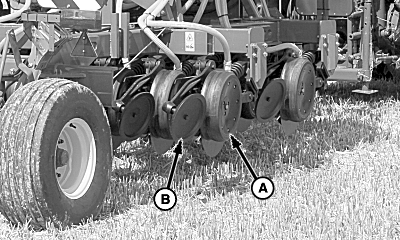

4 m and 6 m Center Section Right-Hand Side Shown

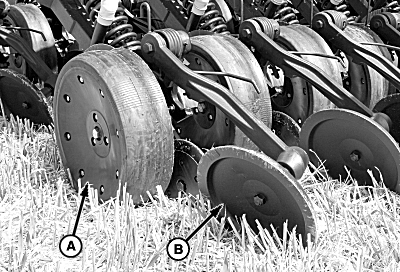

A - Gauge Wheel

B - Closing Wheel

Keep reflectors clean and in place at all times.

KNOW the transport height and width of your machine and be aware of overhead wires.

Dimensions
Transport Width with gauge wheels and closing wheels removed	3 m (9 ft 10 in.)
6-m version Height	4 m (13 ft 1.5 in.)
4-m version Height	4 m (13 ft 1.5 in.)
3-m version Height	2.96 m (9 ft 8.5 in.)

To obtain the specified transport width, remove the following parts:

Parts Removed for Road Transport
Machine Version	Location	Parts
3 m	Right Hand Rear Row	Gauge Wheel (A) and Closing Wheel (B)
3 m	Left Hand Front Row	Gauge Wheel (A) and Closing Wheel (B)
4 m and 6 m	Center Section Left Hand Front Row	Gauge Wheel (A) and Closing Wheel (B)
4 m and 6 m	Center Section Right Hand Rear Row	Gauge Wheel and Closing Wheel
