Hydraulic Connection Recommendations

A82588-UN-23MAY14

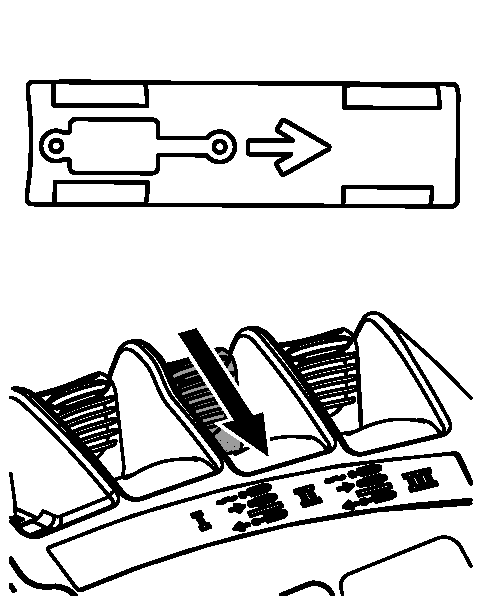

A82662-UN-27MAY14

Extend

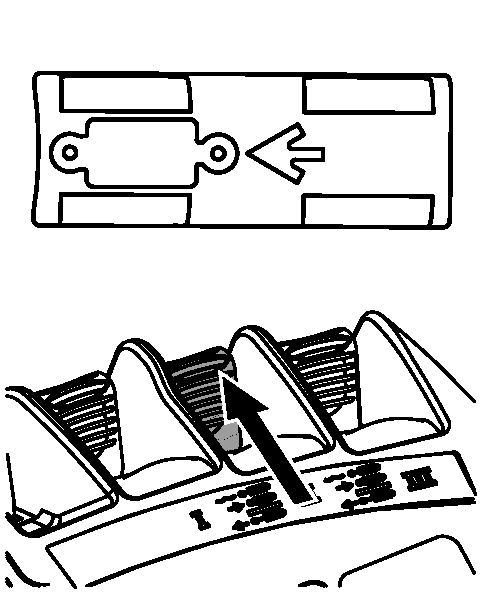

A82661-UN-27MAY14

Retract

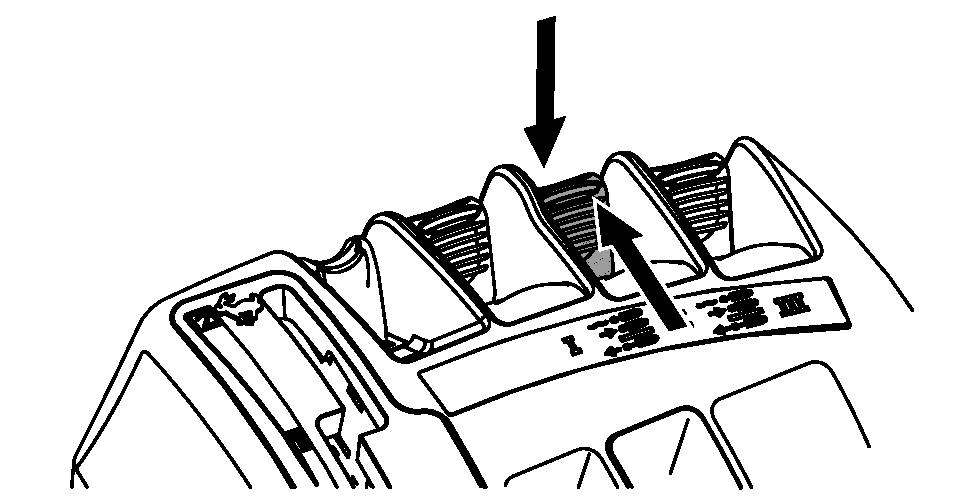

A82587-UN-15MAY14

Float

CAUTION: Relieve hydraulic pressure before connection.

NOTE: When connecting hydraulic hoses, ensure that hose tag matches tractor selective control valve (SCV) symbol.

Extend and Retract symbols are on SCV cover. Refer to tractor operator’s manual for description of tractor controls.

CAUTION: Avoid hydraulic hose failure due to physical damage, kinks, age, and exposure. Inspect hoses regularly. Replace damaged hoses.

IMPORTANT: Avoid motor seal damage. Connect the case drain hose before any other hose. Connect the blower return hoses to a tractor “extend” SCV.

Avoid motor seal damage. Move tractor SCV lever to float (not neutral) position to shut off blower.

Hydraulic Connection Identification
SCV Port	SCV Circuit	SCV Color	SCV Symbol	Implement Function	SCV Flow1	SCV Time1
	Case Drain	Yellow	“D”	Non-Pressurized Hydraulic Return—All Functions	N/A	N/A
A	I	Green	Extend	Openers with Single Point Depth Control Raise	Maximum	5 seconds
B			Retract	Openers with Single Point Depth Control Lower
A	I	Green	Extend	Openers with Active Hydraulic Depth Control Raise	Maximum	Continuous “C”
B			Retract	Openers with Active Hydraulic Depth Control Lower
C	II	Blue	Extend	Blower, Hydraulic Return	Maximum	Continuous “C”
D			Retract	Blower, Engage
			Float	Blower, Disengage
E	III	Brown	Extend	Seeding Tool Outer Units Fold	Variable	5 seconds
F			Retract	Seeding Tool Outer Units Unfold
G	IV	Black	Extend	Markers (When Connected Independently) Engage	Maximum	5 seconds
H			Retract	Markers (When Connected Independently) Disengage
