Remove and Install Rapeseed Brush

Remove Rapeseed Brush

1.

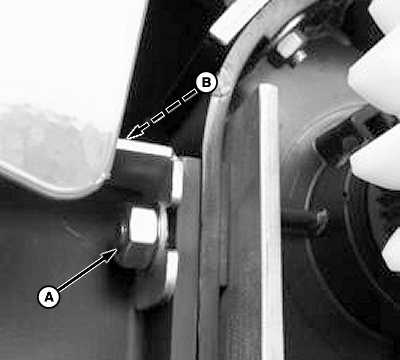

   A90417-UN-05MAY16

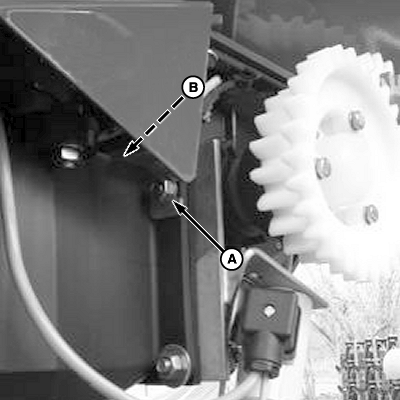

   A90416-UN-05MAY16

   A - Cap Screw, Washers, and Lock Nut

   B - Rapeseed Brush

   Locate the seed meter housing on the left-hand side of the machine.

---




2. Loosen hardware (A) and remove rapeseed brush (B). Tighten hardware.

Install Rapeseed Brush

1. Locate the seed meter housing on the left-hand side of the machine.

2. Loosen hardware (A).

3. Install rapeseed brush (B) using previously loosened hardware. Tighten hardware.
