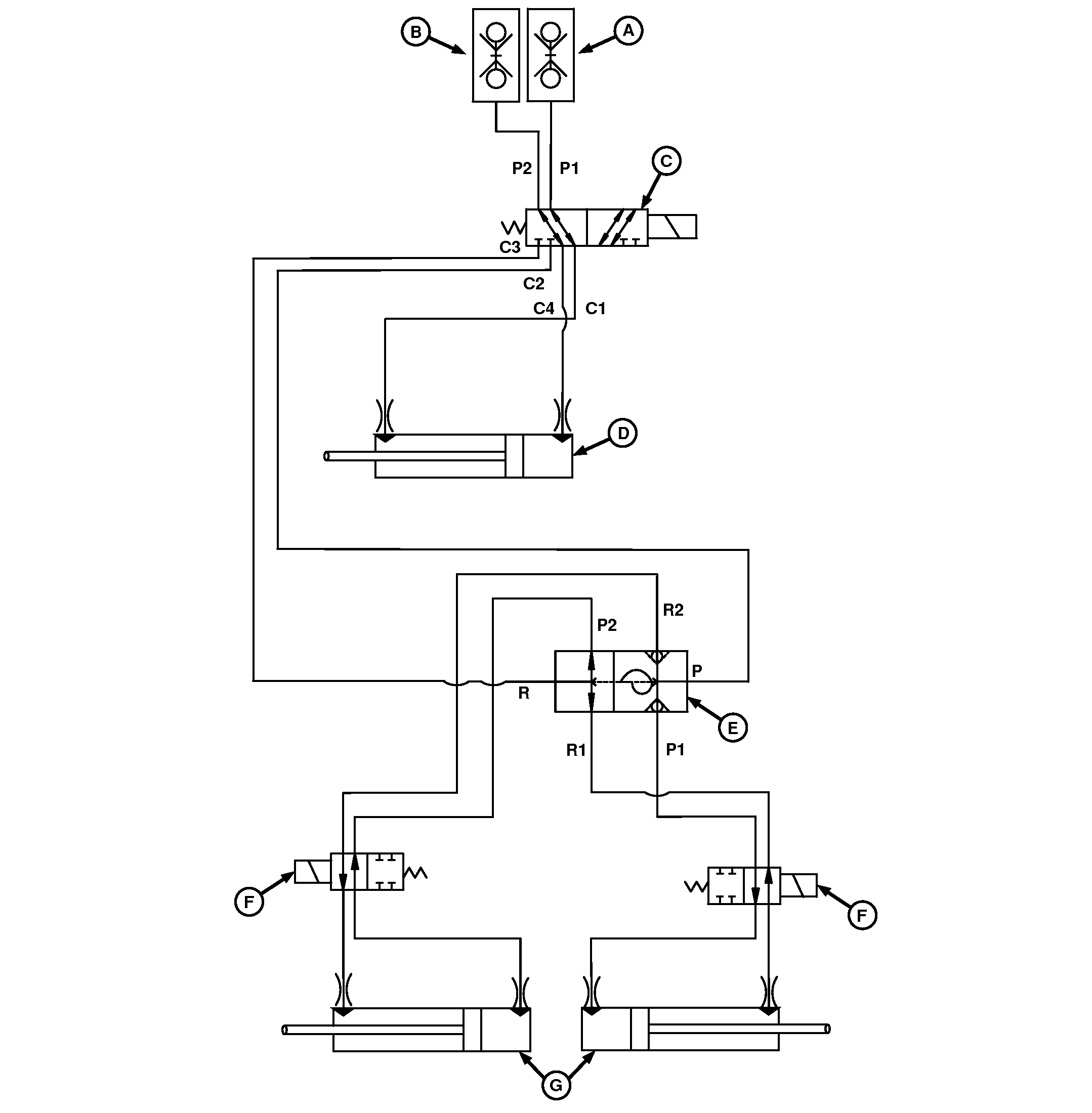

Track Marker and Wing Fold Hydraulic Diagram—4 m (13 ft) Drill

A90471-UN-18MAY16

A - SCV Coupler (Raise)

B - SCV Coupler (Lower)

C - LC Valve

D - Rear Fold Cylinder

E - Sequence Valve for Track Marker

F - Solenoid Valves

G - Track Marker Cylinders
