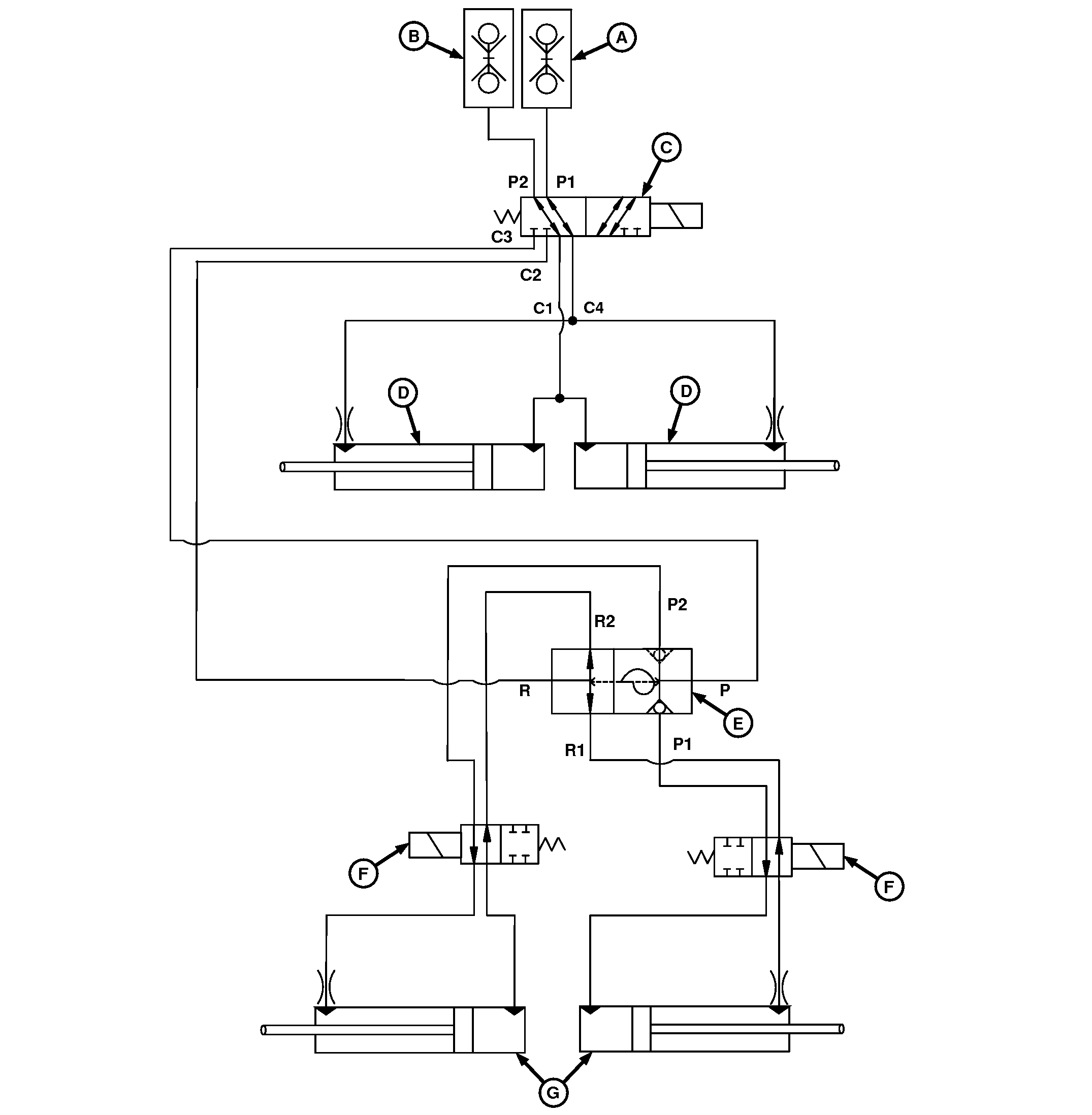

Track Marker and Wing Fold Hydraulic Diagram—6 m (20 ft) Drill

A90472-UN-16MAY16

A - SCV Coupler (Lower)

B - SCV Coupler (Raise)

C - LC Valve

D - Fold Cylinders

E - Sequence Valve for Track Marker

F - Solenoid Valves

G - Track Marker Cylinders
