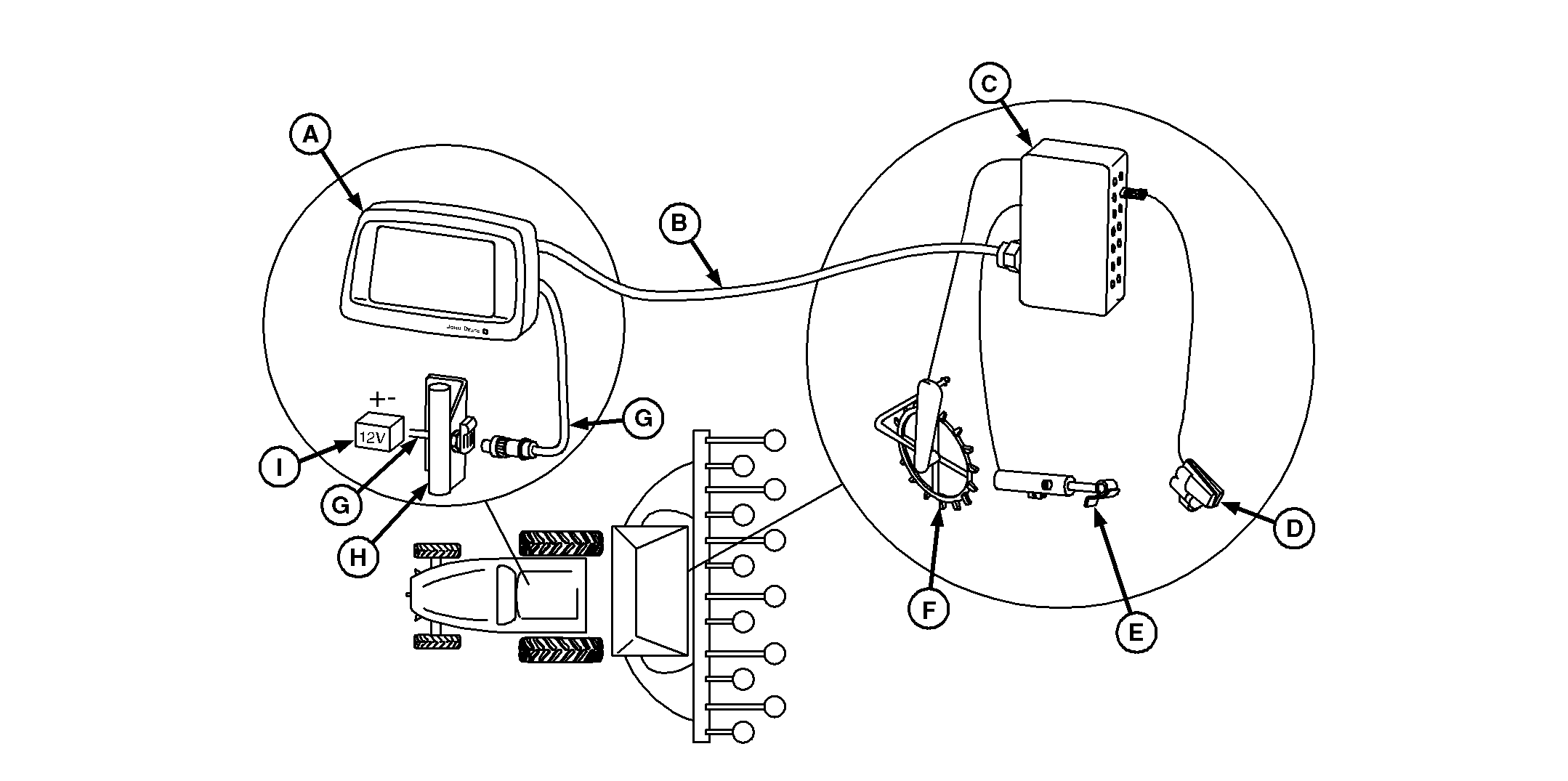

Components of the Electronic Seed Control System

A63445-UN-30OCT08

A - Monitor

B - Connection Lead With Plug

C - Controller

D - Solenoid Shut-Off Valve

E - Sensor On Hydraulic Cylinder Of Drive Wheel

F - Drive Wheel With Sensor

G - Battery Lead

H - Mounting Bracket

I - Battery
