Signus Monitor Operation

A63138-UN-27OCT08

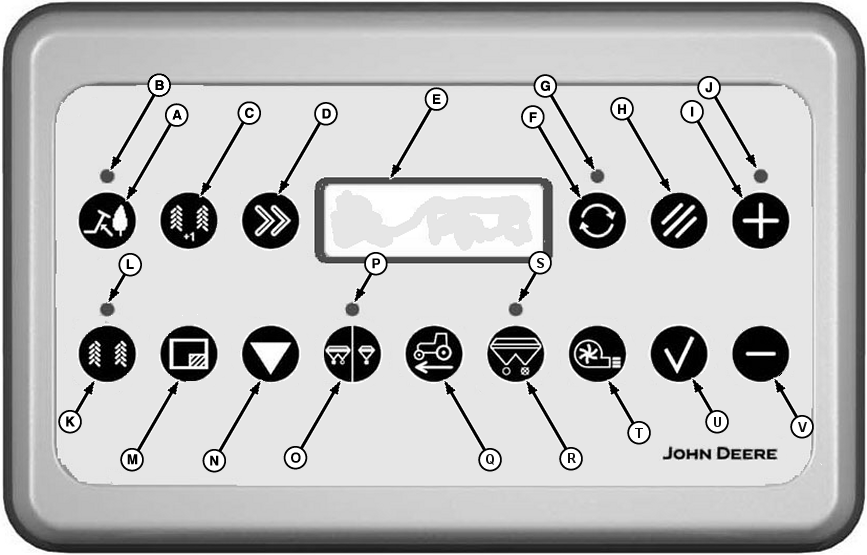

A - Obstruction

B - LED

C - Increase Tramline

D - Menu

E - Screen

F - Alarm

G - LED

H - Clear

I - Increase

J - LED

K - Tramline

L - LED

M - Rate of Work

N - Calibration and Test

O - Meter Shutoff

P - LED

Q - Drive Speed

R - Meter Shutoff (Right)

S - LED

T - Blower Speed

U - Confirm

V - Decrease

(C) Increase Tramline — Increases tramline sequence by 1 (if enabled).

(D) Menu — Cycles through selectable, on-screen, items.

(E) Screen — Displays machine status, settings, and other information.

(F) Alarm — Displays active alarms on screen. LED (G) indicates an active alarm.

(H ) Clear — Cancels input.

(I) Increase — Increases value. Toggles functions. Increases seed rate during operation. LED (L) indicates adjustment to seed rate.

(K) Tramline — Shows current pass in tramlining rhythm. LED (L) indicates selection.

(M) Rate of Work — Displays area covered (in hectacres).

(N) Calibration and Test — Displays calibrations and machine tests.

(O) Meter Shutoff — Shuts off seed meter. If 2 tanks are present, shuts off left-hand meter. Indicated by LED (P).

(Q) Drive Speed — Displays drive speed of tractor.

(R) Meter Shutoff (Right) — Shuts off right-hand seed meter. Indicated by LED (S). If only one meter is present, button is not used.

(T) Blower Speed — Displays current blower speed.

(U) Confirm — Confirms entries.

(V) Decrease — Decreases value. Toggles functions. Increases seed rate during operation. LED (L) indicates adjustment to seed rate.
