Alarms

A63528
A63528-UN-29OCT08

Alarm Button

When an alarm is active, the LED above Alarm button illuminates. Select Alarm button to view active alarm.

A63096
A63096-UN-21AUG08

Menu Button

A63110
A63110-UN-16OCT08

Setup Icon

A63107
A63107-UN-29OCT08

Confirm Button

A63099
A63099-UN-21AUG08

Increase Button

To enable and disable alarm sensors:

  1. Select Menu button until setup icon appears. Select Confirm button .

  2. Select Menu button until alarm screens appear.

  3. Select Confirm button. Select Increase button to enable and disable alarms.

    The following alarms can be enabled and disabled:

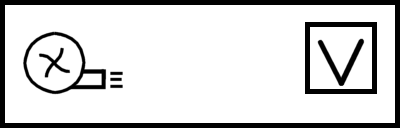

    1. A63125
      A63125-UN-20AUG08

      Blower Speed Alarm

      Blower Speed.

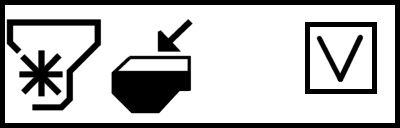

    2. A63124
      A63124-UN-20AUG08

      Seed Meter Alarm

      Seed Meter Sensor. If equipped with two tanks, each meter sensor can be turned off individually.

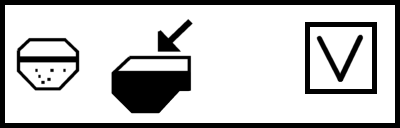

    3. A63126
      A63126-UN-20AUG08

      Low Tank Alarm

      Low Tank Alarm. If equipped with two tanks, each tank sensor can be turned off individually.

NS43404,00000AB-19-20151208
